0.8mm-1.2mm Thickness 1250mm Width Cut To Length Line PPGI GI Material

0.8mm-1.2mm Thickness 1250mm Width Cut to Length Line PPGI GI Material

Parameters

1. Material of processible coiled plate: Galvanized steel, Carbon steel and Aluminium coils
2. Thickness of coiled plate: 0.2-1.0mm;
3. Width of coiled plate: 1250mm;
4. Line speed: 0-10m/min ;
5. Loading capacity:5T hydraulic;
6. Coil I.D: ф480-510mm;
7. Coil O.D: ≤ф1400mm;
8. Diameter of leveling rollers: ф60
9. The distance between leveling rollers: 65mm
10. Material of leveling rollers:40Cr, hardness:HRC52-60
11. Power: 440V three-phase electricity 60Hz;
12. Tolerance of diagonal error:≤±2mm/2000mm
13. Tolerance of length error: ≤±2mm/2000mm
14. Leveling rolls: 4 up, and 5 down
15. Cutting device height is the same as the double machine portable table height.
16. The electrical box is cantilever one unit, it can connect the electrical control box both side of the machine
17. The hydraulic station is within the main machine together, so forklift can move easily.

Hydraulic Control System

Ensure the using of hydraulic parts

The working pressure of the hydraulic system is 6.3-16Mpa

Hydraulic tank capacity is 80 liters

Electrical control system: Siemens PLC and touch screen

PLC control mode, It is controlled by touch screen.

Spare Parts

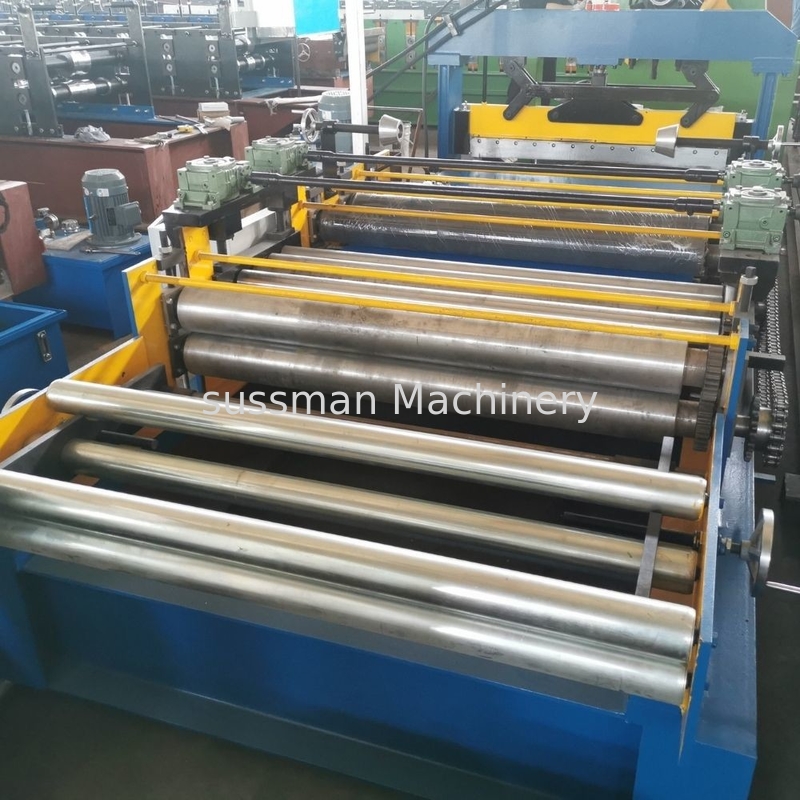

Machine Shows
