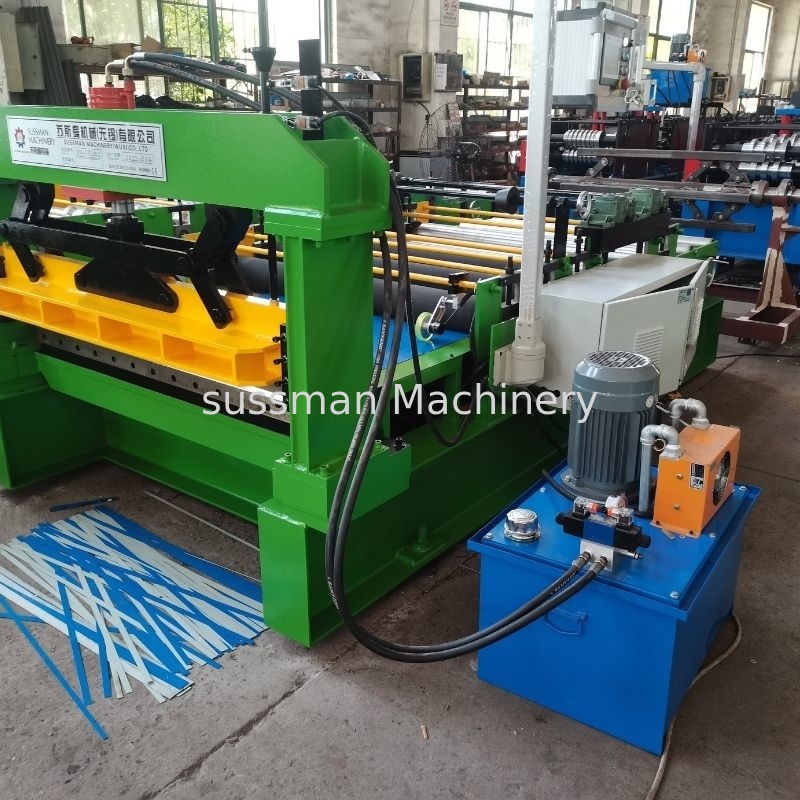

1250 Mm Width 5 Tons Weight Decoiler Automatic Hydraulic Steel Coil Cut To Length Line Machine
1. Technical Parameter
Coil weight from 200 kg (440 Lbs) to 5 tons (11023 Lbs)
Strip size from 200 mm (8”) to 2000 mm (80‘’)
Material thickness from 0.2 mm up to 1.0 mm
|
0.2-1.0mm*1250mm simple metal sheet coil cut to length line machine |
||||
|
1.Formed Material |
PPGI,GI,AI |
Thickness:0.2-1.0mm Width:1250-1500mm(customized) |
||
|
2.Decoiler |
Hydraulic automatic decoiler |
Manual decoiler(will give you as free) |
||
|
3.Main body |
Leveling roller |
11pcs,up 5 down 6,depends on request too |
||
|
Diameter of shaft |
70mm solid shaft |
|||
|
Slitting blade |
4 pcs or as request |
|||
|
Machine frame |
350 H steel |
|||
|
Drive |
Gear transmission |
|||
|
Cutting type |
Hydraulic cutting |
|||
|
Cutting blade material |
Cr12mov with quenched treatment |
|||
|
4.Power |
Motor Power |
5.5KW |
||
|
Hydraulic power |
5.5KW |
|||
|
5.Voltage |
380V 50Hz 3Phase |
As your requirement |
||
|
6.Control system |
Electric Box |
Customized(famous brand) |
||
|
PLC |
Automatic production of the whole machine. Can set batch, length, quantity, etc. |
|||
|
18.Forming Speed |
0-20m/min |
The speed depends on the shape of the tile and the thickness of the material. |
||
2. Cut to length line Work Process:
How does coil cut-to-length line work?
Coil cut-to-length lines work by taking metal coils or rolls from a metal mill and turning them into flat metal sheets of your specifications. These rolls are fed into the coil cut-to-length line which unspools, flattens, cuts, and then stacks them as flat metal sheets. Coil cut-to-length lines are an effective tool for producing sheet metal for your business.We offer light, medium, and heavy cut-to-length lines, each suited for your specific workloads.
3. Cut to length line machine description
The end product produced by a Cut-To-Length Line is a flat sheet of material cut to a very precise length tolerance.
We can customize the Cut-To-Length line according to your requirement, there are several variables you should provide: the thickness of material, the type of material, length of the sheets to be produced, as well as annual volume to be processed all influence the line configuration and capabilities required for a successful installation.
4. Composed Device
1. Manual decoiler
2. Hydraulic cutting
3. Out put table
5.Sussman Machinery
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it's always design and produce various type profile of roll forming machine. The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects.
Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand. Company building area is over 5000 square meters, it has a highly efficient design, manufacturing, sales of high-quality team. The machine is coving in 30 provinces of China and worldwile.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better. The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming machine can be designed according to customer's profiles. Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
