Floor Deck Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | SUSSMAN |
| Certification | SGS,CE ,ISO9001 |
| Model Number | SS-FD |

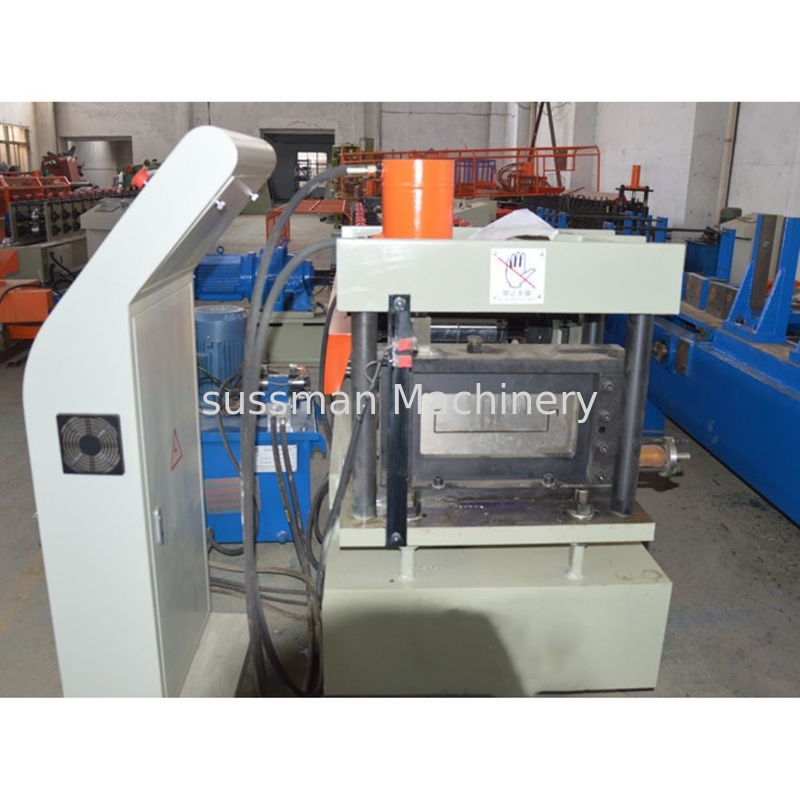

300mm Width Zincalume Galvanized Steel Metal Condeck Floor Deck Roll Forming Machine
CONDECK composite decking is a 300mm wide, galvanised metal profile sheet used to support suspended concrete floors in steel or concrete construction or over-loaded masonry walls. It is a lightweight and efficient system that is easy to handle and cut on site. Its engineered ribs have excellent spanning capacities making it suitable as lost formwork. Engineers can also take advantage of its composite action to optimise slab design, thereby saving on concrete and reinforcement costs.
Technical Data:
| Items | Specifications | |
| Material of coil | Material Thickness | 0.6-1.2mm Zincalume |
| Profile width |
Width 405mm
|
|
| Profile height | 54mm/55mm | |
| Un Coiler | 5 tons manual | |
| Forming system | Rolling Speed | About 12m/min |
| Roller Stations | About 20 stations | |
| Roller Material |
Gcr15 coated with chrome
|
|
| Maim Motor Power | 7.5 kw | |
| Motor cutting Power | 4kw | |
|
Cutting system |
Material Of Cutting | CR12mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
415V, 50HZ,3 phase Also can satisfy Customer’s requirey |
| Control System | PLC Delta as list in the note | |
| Weight | About 3 tons | |
| Way Of Drive | 1 inch chain |
Machine List:
| Main roll forming machine | 1 set |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| Out table | 1 unit |
| Hydraulic cutting device | 1 unit |
Profile Drawing:
Loading Picture
Application:
Condeck composite slab system is an ideal structural decking for concrete or steel-framed structures. The ribs of the profile are fully enclosed in concrete, providing the advantages of a solid slab, with the savings of a composite slab. There are no voids to compromise thermal performance and there is usually no need for positive reinforcement or fire emergency reinforcement.
Time, labour and material savings
Suitable for commercial and industrial applications
Ideal structural decking for concrete or steel-framed structures
