Floor Deck Roll Forming Machine
>
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman Machinery |
| Certification | CE SGS ISO |

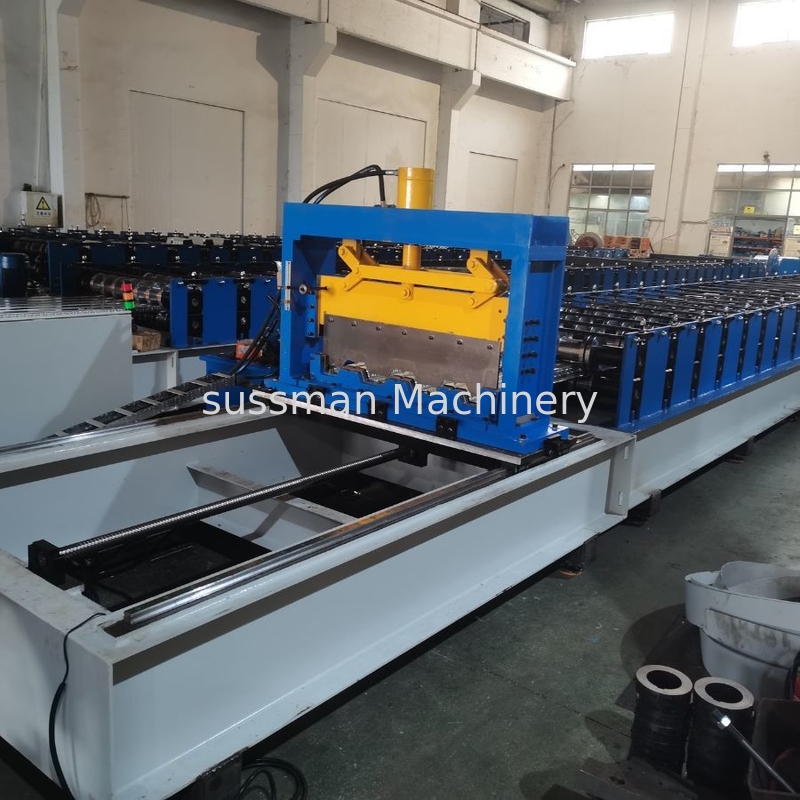

The Floor Deck Roll Forming Machine is a versatile and reliable machine designed for the manufacturing of floor deck. It can operate with high speed and precision, making it an ideal choice for continuous production.
The machine is made with a robust construction and features a hardness rating of HRC58-62, roller material of 45# steel, 28 roller stations, and a thickness range of 0.7-1.5mm.
Its transmission chain is made from high strength chain for maximum durability and performance. The Floor Deck Roll Forming Machine is designed for maximum efficiency and accuracy, making it the perfect choice for manufacturing floor deck.
Roof deck floor decking panel machine | |
Raw material | Galvanized coils yield strength till 550 Mpa |
Material thickness:16-22gauge( 0.8-1.5 mm) | |
Machine frame | 400 H beam steel welded |
Roller fixer | Middle plate (thickness 40mm) |
Material of rollers | Gcr15 quenching treat HRC58-60 |
Forming stations | 32+embossing roller stations |
Diameter of shafts | φ 95 mm |
Material of shafts | 45# steel precision-machined |
Forming speed | 0-15 m per minute |
Voltage | 220v 60hz 3 phase or as request |
Transmission way | 2 inches double chain |
Drive motor | Power:15 kw x 2 sets |
Cutting blade material | Cr12Mov quenched treatment to improve hardness |
Cutting type | Hydraulic cutting |
Dimension of the machine | 15000 х 1850 х 1500 mm |
Weight | about 20 t |
Sussman Machinery's Deck Floor Roll Forming Machine is designed to produce strong and durable deck flooring, which is ideal for various applications. It is manufactured in Wuxi, China, with the highest quality standards, and is certified by CE SGS ISO. The minimum order quantity is only 1 set, and the price is to be discussed. The machine is delivered with a naked steel package, and the delivery time is 60 days. The payment terms include TT/ LC, and the supply ability is 20 sets. The cutting type is hydraulic cutting, and the roller material is 45# steel. The thickness ranges from 0.7 to 1.5 mm, and the drive way is chain drive. The hardness is HRC58-62.
We made many floor decking machines for the North American countries, such as the America,Canada, Mexico, Colombia, Especially for the America, we already sent many floor decking machines there, we have customer from New York,Florida, Texas, California as so on.
The floor decking machine America use are almost same and standard1.5B type is one they normally used, 2 inches and 3 inches composite deck and the material thickness they used are Gauges 16 18 20 22 as so on.
Most of the metal floor decking panel are 36” effective width and 48” input material width.
Packaging and Shipping for Floor Deck Roll Forming chine:
We ensure that the Floor Deck Roll Forming Machine is properly packaged and shipped to customers. We use standard wooden boxes to pack the machines, which are robust and can protect the machine from any kind of damage during transportation. We use reliable international shipping companies to ensure that the delivery is made on time and without any hassle.
