13 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic
  • 13 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic
  • 13 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic
  • 13 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic
  • 13 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic

13 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CE
Model Number SM-GR
Product Details
Material Thickness:
2.5-3.0mm
Forming Speed:
Max 20m/min
Main Motor Power:
22Kw
Forming Stations:
15 Stations
Hydraulic Power:
5.5Kw
Coil Weight (Max):
5000kg
High Light:

corrugated roll forming machine

,

guard rail roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard packing
Delivery Time
75days after deposit
Payment Terms
T/T L/C, D/P, Western Union, MoneyGram
Supply Ability
10 sets per months
Product Description

13 Station Leveling W shape  5.5Kw Hydraulic Guardrail Roll Forming Machine HRC48 - 52





Guardrail Roll Technical Parameter


1.   Steel Sheet Thickness: 2-4mm (depend on requirement )
2.   Hydraulic power: 5.5Kw
3.   Transmission way: gear box
4.   Material of blad: Cr12, quenching treatment
5.   Capacity of Decoiler: 5 ton hydraulic decoiler
6.   Forming Speed: 15-20m/min (not include cutting and punching stop time)
7.   Roller Groups: 15 stations upper and 16 stations down
8.   Roller Material: GCr15, quenching treatment
9.   Material: galvanized steel
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main Motor Power: 22 Kw




Guardrail Roll Main Components





     S.N

   Equipment name


   Quantity

      1.

    3T hydraulic un-coiler


    1 set

      2.

    Feeding and leveling device


    1 set

      5.

    Main roll forming machine 15 stations drived by gear          box

    1 set

      6.

    Hydraulic station


    1 set

      7.

    Control system (including control box)


    1 set

      8.

    Out tables


    2 sets

      9.

    Punching Device


    2 sets
























Advantage for Guardrail Roll


1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable





Working Flow of Guardrail Roll

Decoiler----Feeding and Leveling---Punching---Roll forming---Cutting---Run out tables

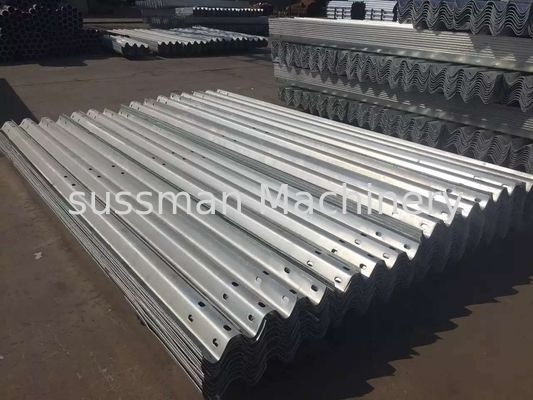

Profiles of Guardrail Roll

13 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic 013 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic 1

13 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic 213 Stations W Profile Two and Three Waves Guardrail Roll Forming Machine With 5.5Kw Hydraulic 3
