Durable Roof Tile Making Machine Double Glazing Roof Panel Roll Forming Equipment

Place of Origin China
Brand Name Sussman
Certification SGS.CE.ISO
Model Number SM-DG
Product Details
Name:
Double Glazing Tile Roll Forming Machine
Material Thickness:
0.3-0.8mm
Material:
Galvanized Steel
Forming Stations:
18 Stations
Roller Material:
Gcr15, Quench HRC58-62 Plated Chrome
Dirve System:
Chain Drive
Power Supply:
380V, 50Hz, 3Phase
Forming Speed:
8-12m/min
Machine Weight:
About 12 Tons
Machine Size:
8.mx1.8mx1.4m
Highlight:

Automatic Vacuum Forming Machine

,

Metal Roofing Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and Steel
Delivery Time
60days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

Durable Roof Tile Making Machine Double Glazing Roof Panel Roll Forming Equipment




Technical Data:


Item NO


Description


Offered specification

1

Product Line speed

8-12m/min(not include cutting )

2

Suitable material  thickness

0.3-0.8mm

3

Raw material

galvanized coils yield strength≤G250MPa

4

Dimension

8000×1700×1500(mm) about

5

Levelling device

7 roller levelling including 3 top rollers and 4 bottom rollers

6

Roller stations

18 stations


7

Roller material

bearing steel, quenching treatment

8

Shaft diameter

Φ75mm ,material is 45# forge steel

9

Transmission

By chain 1 inch 20A double chain with longer shafts

10

Material of chain

45# forged steel with frequency quenching, 12A

11

Material of cutting

Cr12Mov with quench HRC58-62°

12

Main motor power

7.5kw

13

Motor power of hydraulic station

4kw

14

Hydraulic station pressure

12Mpa

15

Tolerance

6m+-1.5mm

16

Frame

H Beam


Main Components


Serial No.

Commodity & Description

Quantity

1

5T manual uncoiler

1 set

2

Leveing  guiding

1 set

3

Servo feeding device

1 set

4

Main roll forming machine

1 set

5

Hydraulic station

1 set

6

Cutting device

1 set

7

Finished products tabel

1 set

8

PLC control system

1sets

9

Out tables

1 sets

10 Spare parts 1 sets

Working Flow of Roll Forming Machine
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

 Durable Roof Tile Making Machine Double Glazing Roof Panel Roll Forming Equipment 0

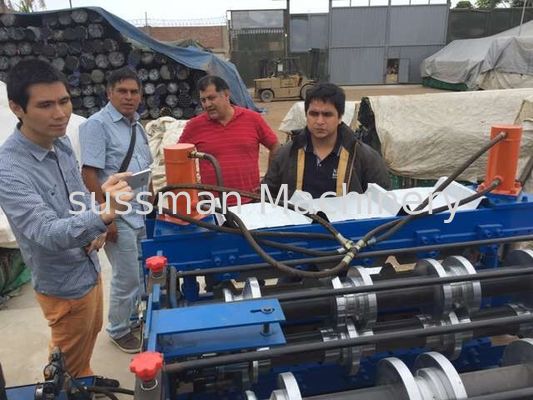

Our Machine In Peru
