Automatically C Purlin Roll Forming Machine

Place of Origin	Wuxi, China
Brand Name	Sussman
Certification	CE, SGS, ISO
Model Number	RF-ST

Product Details

Material Thickness:

1.5-3mm

Forming Speed:

12m/min

Roller Stations:

About 15 Stations

Main Shaft Material:

45# Steel

Main Motor Power:

7.5Kw

Hydraulic Power:

5.5Kw

Control System:

PLC With Touch Screen

Dirve System:

Single Chain

Highlight:

metal forming machine

tube forming machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Shipped in 75 working days after payment

Delivery Time

60 working days after deposit

Supply Ability

10 sets/month

Product Description

Fully Automatic 13 Stations C Purlin Channel Steel Roll Forming

Technical Parameter

1.1 Hydraulic decoiler

Forming thickness: 1.5-2.2 mm,galvanized coils yield strength≤G250MPa
working speed: 12M/min(not include cutting and punching stop time)
Hydraulic punching device: 1 set
Notching device: 1 set
roller stations: about 13 stations
material of roller: bearing steel, quenching treatment.
material of main shaft: 45# fine steel,
diameter of main axis: ￠75mm
main motor power: 7.5kW
motor power of hydraulic station: 5.5 KW
hydraulic station pressure: 12MPa
electric control system: whole line adopted PLC control, Panasonic PLC
cutting type: hydraulic drive, cut after forming
material of cutting blade: Cr12mov quenching process

3. Working Flow

Uncoiling- infeed guiding-levelling- punching-roll forming- hydraulic cutting- output table- spare parts for reference

4. Main Structure and Characters

S.N	Name	Qty
1	3T Passive Uncoiler	1 set
2	Punching Station	1 set
3	Main Roll Forming	1 set
4	Cutting Unit	1 set
5	Hydraulic Station	1 set
6	Control Cabinet	1 set
7	Output table	1 set

5. Profile

Automatically C Purlin Roll Forming Machine 0

6. Machine Photo

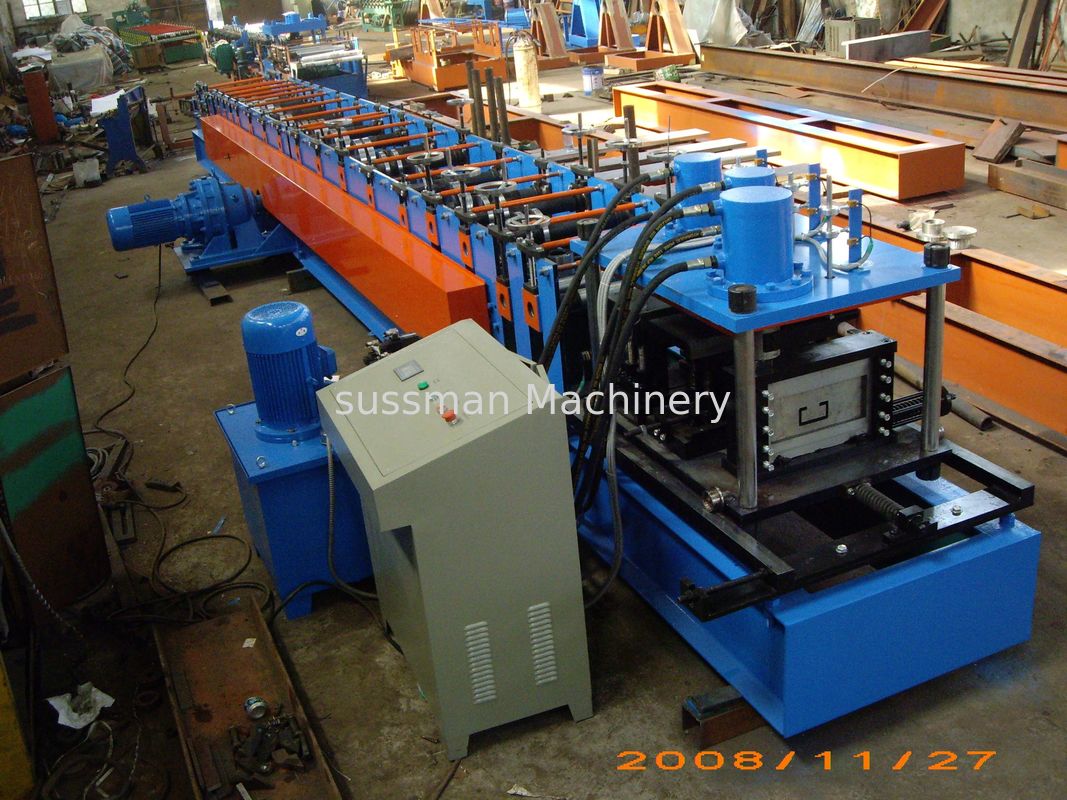

Automatically C Purlin Roll Forming Machine 1

Automatically C Purlin Roll Forming Machine 2

7. Application

The type of rack you need depends on where the solar panels will be mounted. They are most often either mounted on top of a pole or on a roof. Top-of-pole mounts can be either stationary or trackersthat follow the sun's movement across the sky. Sometimes solar panels are mounted on a rack on the ground.
