Product Details:
|
| Material: | Colorcoated Steel Coil | Roller Station: | 18 Stations |
|---|---|---|---|
| Power Supply: | 380V, 50Hz, 3Phase | Dirve System: | Chain Driving System |
| Machine Size: | 8.7*1.8*1.4m | Tolerance Of Cutting: | 1.5mm |
| High Light: | Slip Roll Forming Machine,Metal Roofing Roll Forming Machine |
||
Glazed tile roll forming machine
Technical Parameter
|
Description
|
Offered specification
|
| Product Forming Speed |
12--18 m per min (not including cutting )
|
| Suitable material thickness |
0.25-2.0 mm
|
| Raw material |
galvanized coils yield strength≤G250MPa
|
| Dimension |
8000×1700×1500(mm)
|
| Levelling device |
7 roller levelling including 3 top rollers and 4 bottom rollers
|
| Roller stations |
18 stations
|
| Roller material |
bearing steel, quenching treatment
|
| Shaft diameter |
Φ75mm ,material is 45# forge steel
|
| Transmission |
By chain 1 inch 20A double chain with longer shafts
|
| Material of chain |
45# forged steel with frequency quenching, 12A
|
| Material of cutting |
Cr12Mov with quench HRC58-62°
|
| Main motor power |
7.5kw
|
| Motor power of hydraulic station |
4kw
|
| Hydraulic station pressure |
12Mpa
|
| Tolerance |
6m+-1.5mm
|
| Frame |
H Beam
|
Main Components
1. 5 ton passive decoiler
2. Main roll forming machine
3. Hydraulic station
4. Cutting device
5. Finished products tabel-
6. PLC control system
7. Spare parts
Advantage for Roll Forming Machine
1. Reasonable Price
2. 12 Months Warranty
3. More Than 10 Years Experience
4. Afrer-sales service
Working Flow
De-coiler-→Level device -→Main roll forming machine-→Hydraulic cutting-→ Run out table
A. Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)
B. Servo Feeding Applicator............................................To feed the material accurately
C. Hydraulic/Press Punching...........................................To punch as requirements
D. Roll Forming Unit.........................................................To roll form as requirements
E. Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)
F. Output Table................................................................Support the finished products

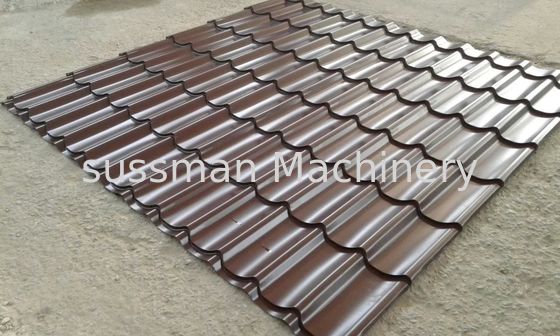

Profile Drawing of Product
