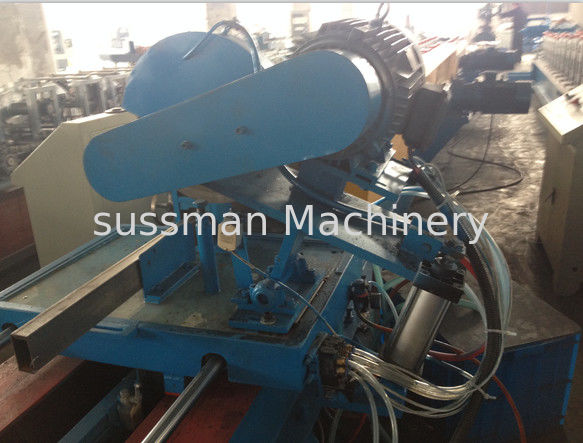

Single Chain Drive Downspout Tube Roll Forming Machine With 45# Steel Roller
  • Single Chain Drive Downspout Tube Roll Forming Machine With 45# Steel Roller
  • Single Chain Drive Downspout Tube Roll Forming Machine With 45# Steel Roller
  • Single Chain Drive Downspout Tube Roll Forming Machine With 45# Steel Roller

Single Chain Drive Downspout Tube Roll Forming Machine With 45# Steel Roller

Place of Origin China (Mainland)
Brand Name Sussman
Certification CE. ISO. SGS
Model Number SS-DS
Product Details
Material:
Galvanized Steel Sheet
Material Thickness:
0.3-0.6mm
Forming Stations:
20 Stations
Roller Material:
45# Steel With 60mm Shaft
Dirve System:
Chain Drive
Power Supply:
380V, 50Hz, 3Phase
Forming Speed:
Up To10-15m/min
High Light:

plate rolling machine

,

tube roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard package with film, plastic and steel wire.
Delivery Time
60 working days after deposit
Payment Terms
L/C, T/T, Western Union
Supply Ability
10 sets per month
Product Description

Downspout pipe roll forming machine



1.Technical Parameter









Item NO.





Description





Offered Specification



1.0

Roll forming machine



1.1

Rolling speed 10-15m/min(not include cutting time)



1.2

Rolling thickness 0.3-0.6mm



1.3

Raw material Galvanized steel sheet



1.4

dimension 3500×1600×1500(mm)



1.5

Effective width 60mm
1.6 Roller stations

13 stations One stage for embossing





1.7

Roller material 45#forge steel, coated with chrome



1.8

Shaft diameter Φ70mm ,material is 45# forge steel



1.9

Transmission By chain 1 inch



1.10

Material of chain 45# forged steel with frequency quenching, 12A



1.11

Material of cutting Cr12Mov with quench HRC58-62°



1.12

Tolerance 6m+-1.5mm



1.13

Frame H type steel







2.Main Components







Serial No.



Commodity & Description



Quantity



1

3T manual uncoiler 1 set



2

Infeed guiding 1 set



3

Main roll forming machine 1 set



4

straighten device 1 set



5

Hydraulic cutting equipment 1 set



6

Output table 1 set



7

Main drive 1 set



8

Hydraulic system 1 set



9

Controlling system (including cabinet) 1 set



10

Downpipe elbow forming machine 1 set



11

seaming machine 1 set









3.Working Flow of Roll Forming Machine





De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table







Galvanized cold steel sheet downspout pipe roll forming machine







4. Advantage for Roll Forming Machine



1. Reasonable Price



2. High Quality



3. 12 Months Warranty



4. More Than 10 Years Experience



5. Durable



6. Afrer-sales service







5.Profile of product







Galvanized cold steel sheet downspout pipe roll forming machine





Galvanized cold steel sheet downspout pipe roll forming machine





6.Photo Gallery



Galvanized cold steel sheet downspout pipe roll forming machine







Galvanized cold steel sheet downspout pipe roll forming machine







Galvanized cold steel sheet downspout pipe roll forming machine





Galvanized cold steel sheet downspout pipe roll forming machine



7. Loading picture



Galvanized cold steel sheet downspout pipe roll forming machine
