15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized

15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized
15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized
Basic Information
Place of Origin: CHINA
Brand Name: Sussman
Certification: CE ISO
Model Number: RF-GH
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Voltage: 380V Condition: NEW
Tile Type: Steel Sidewall Thickness: 2.5cm
Motor Powe: 45000w Production Capacity: 15M/min
High Light:

highway guardrail roll forming machine

,

guard rail roll forming machine

Galvanized Steel Guardrail Roll Forming Machine Hydraulic Color Customized


Description


Rolling MaterialW:480mm,T:3-4mm,Q235AGalvanized Coil
Rolling Speed10-15M/min
Under Frame450H-beam
Sidewall Thickness25mm
Roller Station13Groups
Roller MaterailGcr15Bearing Steel Treatment HRC58-62
Shaft MaterailHigh grade 45# forging steel with cylindrical grinding
Shaft Diameter95mm
Main Motor Power45kw
Tranmission MethodUniversal joint transmission gear box
Leveling Motor Power5.5kW
Hydraulic Motor Power15kW
Pressure20Mpa
Punching&Cutting Methodadopt hydraulic driving, flat sheet pre-punch, post to cut after roll forming
Punching&Cutting MoldCr12quenching treatment,HRC58-60
Electricalwhole set adopts industrial computer PLC frequency changing controlled for length to cut tolerance≤1.5mm
Whole unit size(mm)13500x2700x1600


Main Structure Components

Type Highway Guardrail Roll Forming Line is consist of 5T passive decoiler,transmission device,leveling device,3 units pre-punching device,roller forming system,post to cut after forming,Computer control cabinet,and finished support table.

Processing Sketch

Passive Decoiler--->Feeding Straighting--->Seven Leveling Rollers--->Flat Pre-punching--->Roll Forming--->Post to Cut--Exit Rack

2016 hot sale Road Used Hydraulic Galvanized Steel High Way Guardrail Roll Forming Machine

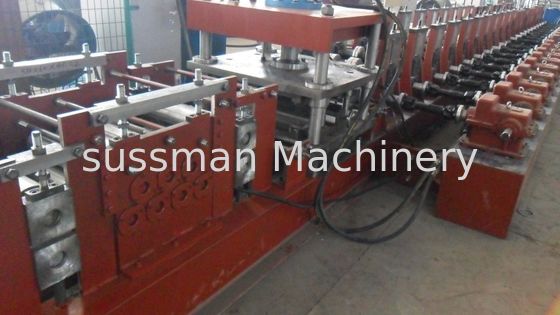

Machine pictures

15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 1

15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 2

15M/min 25mm Galvanized Steel Guardrail Roll Forming Machine 380V 7.5Kw Hydraulic Color Customized 3

FAQ

Q1. What's your delivery time?
A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.
Q2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

Q3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.
Q4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.
