|. Decoiler Capacity::||5T||Material Width And Thickness:||480mm*(2.0-3.2mm), Q235A Steel|
|Working Speed:||15M/min||Main Motor Power:||22kW|
corrugated roll forming machine,
highway guardrail roll forming machine

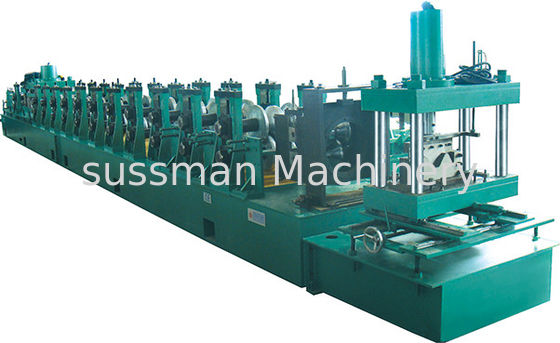

PLC Control system 8-12M/Min High Speed Guardrail Roll Forming Machine Glazed Steel Color Customized
It can form guardrail sheet according to customer’s requirement continuously, automatically cut to length. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for guardrails. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.
1. Decoiler: umbrella type, passivity decoil, manual expansion
2. Decoiler capacity: 5T
3. Material width and thickness: 480mm*(2.0-3.2mm), Q235A steel
4. Working speed: 15M/min
5. Forming stand: 15 station and 7 leveling rollers
6. Roller material:GCr15 bearing steel with quenching treatment, HRC58-62
7. Main shaft material: high grade No.45 steel by thermal refining
8. Main shaft diameter: φ95mm
9. Main motor power: 22kW
10. Transmission: Chain
11. Leveling motor power: 5.5kW
12. Hydraulic motor power: 11kW with accumulator
13. Punching and cutting type: hydraulic transmission, pre-punching, cutting after forming
14. Punching and cutting mould: Cr12 with quenching treatment, HRC58-60
15. Outside size of machine: 16000x2700x1700
16. Hydraulic station pressure: 10~12 Mpa
17. Control system: the production line adopts industry computer PLC frequency converting controller, the length tolerance ≤2m
18. transducer: Mitsubishi
19. PLC: Mitsubishi FX-IS series
It includes 5T manual decoiler, driver device, leveling device, two sets of pre-punching device, main roll former (includes guide device), hydraulic cutter device, hydraulic system, control system (PLC), output table, etc.
decoil - feeding and correct - roll forming - punching hole cutting - output sheet
1) All the rollers and shafts are solid.They are made of high quality No.45 Steel.
2)We have experienced engineers with more than 10 years to offer the most popular solutions.
3) installation engineers can go to your site if needed
4)12 months maintenance and whole life technical support.
5)We cooperate with Maersk,APL,CMA,EMC,MSC, and PIL etc, 32 big shipping companies.
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated
