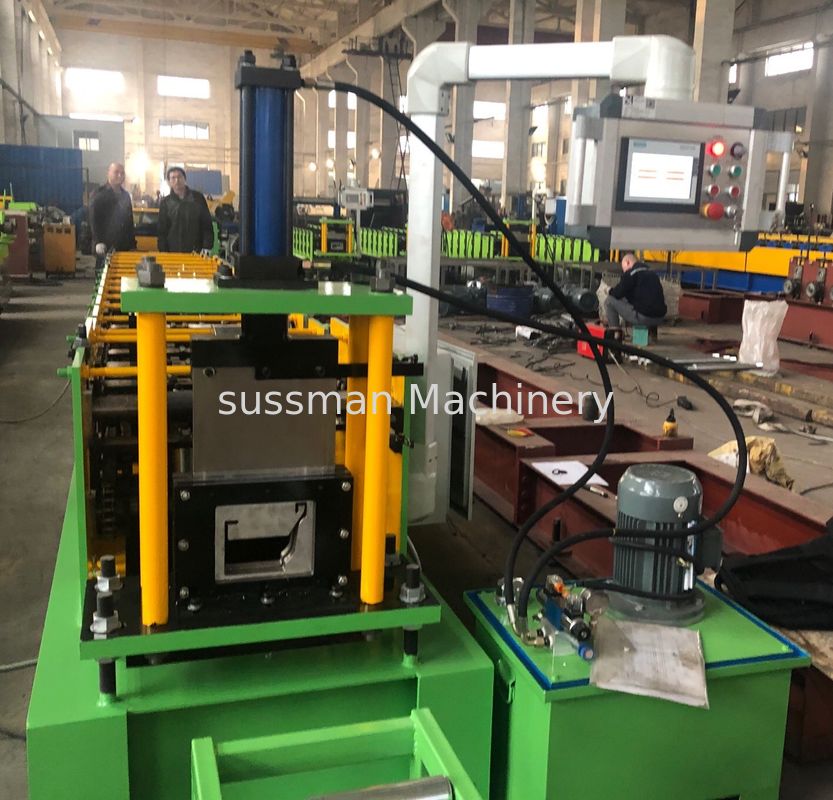

Chain Driving Downspout Roll Forming Machine Roof Gutter Making Machine 15m / Minute

Chain Driving Downspout Roll Forming Machine Roof Gutter Making Machine 15m / Minute

Technical Parameter

1.1 Rolling speed: 15--18 m/min (not include cutting time)

1.2 Rolling thickness:  0.3-2.6mm

1.3 Raw material:   Galvanized steel sheet

1.4 Dimension:   3500×1600×1500(mm)

1.5 Effective width:  60mm
1.6 Roller stations: About 19 stations One stage for embossing
1.7 Roller material:   45#forge steel, coated with chrome

1.8 Shaft diameter:  Φ70mm ,material is 45# forge steel

1.9 Transmission:   By chain 1 inch

1.10 Material of chain:  45# forged steel with frequency quenching, 12A

1.11 Material of cutting:  Cr12Mov with quench HRC58-62°
1.12 Cutting tolerance:  6m+-1.5mm

1.13 Frame:  H type steel

Main Components

Working Flow

A.Passive Decoiler..........................................................To load and uncoiling material


B.Servo Feeding Applicator............................................To feed the material accurately


C.Hydraulic/Press Punching...........................................To punch as requirements


D.Roll Forming Unit.........................................................To roll form as requirements


E.Hydraulic Cutting.........................................................To cut sheets as desired length


F.Output Table................................................................Support the finished products

Decoiler ---- Feeding --- Levelling---  Cutting ---Roll forming--- Run out table

Standard Profile of  Gutter
