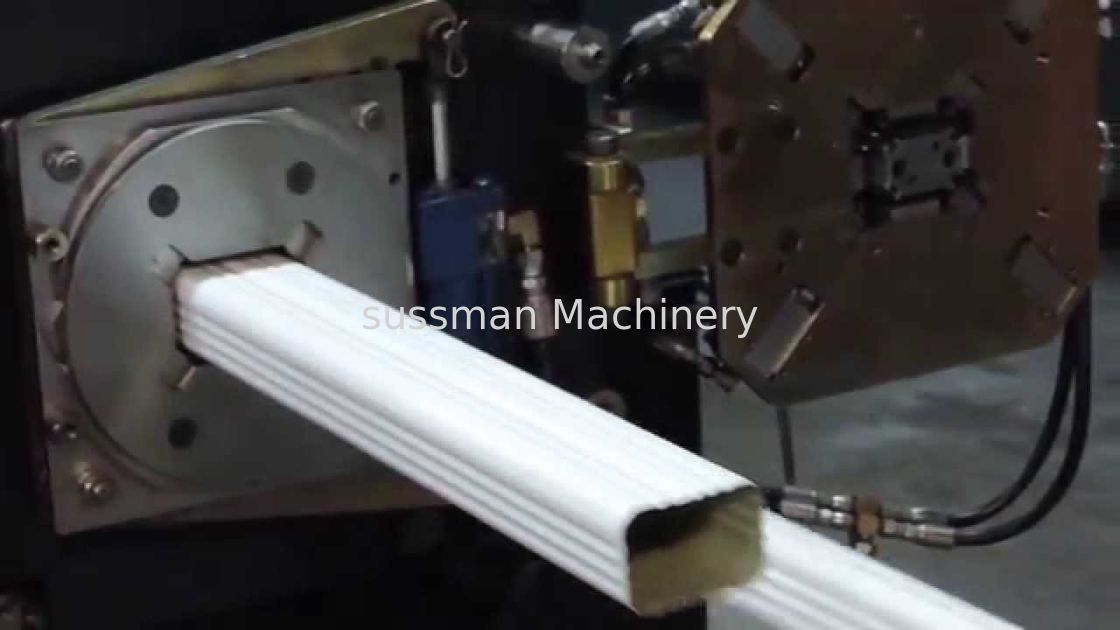

7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel
  • 7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel
  • 7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel
  • 7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel
  • 7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel
  • 7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel

7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel

Place of Origin Jiangsu, China (Mainland)
Brand Name Sussman
Certification CE ISO
Model Number RF-DM
Product Details
Raw Material Thickness::
0.45-0.55mm
Type:
Pipe Production Line
Weight:
7.5T
Voltage:
380 V, 50 Hz
Material:
Glazed Steel
Dimension(L*W*H)::
6800mm*800mm*1200mm
High Light:

plate rolling machine

,

tube roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
FILM
Delivery Time
60DAYS
Supply Ability
10 SETS PER MONTH
Product Description
Most Popular Downspouts Roll Forming Machine, making machinery

Most Popular Downspouts Roll Forming Machine, making machinery
material
coating rolled steel, etc
thickness
0.4-1mm
Forming specifications
depending on specific requirements of customers
Forming speed
10-15m/min
Main motor power
5.5-7.5 kw
Cutting mode
pneumatic flying saw tracking cutting
Rolling material
45# steel
Diameter of the roller
Φ80mm
Control system
PLC systems from Mitsubishi and Panasonic products
Optional accessories
hydraulic uncoiler

Product Application

High standard aluminum downspout water gutter rolling forming machine includes in unpowered decoiler unit, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric controlling system and product supporter.Curving pipe forming machine is the complementary equipment for down pipe forming machine. It can make curve for down pipe to meet the requirement of practical engineering projects.



Main Features

1) DC driving for slitting and recoiling
2) PLC automatic controlling, VF speed adjusting
3) High quality alloy blade for precision working
4) International famous brand Electrical and Pneumatic elements

5) Reliable precision with high working speed.



Detailed Images
7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel 0
1000/1250mmx10 ton hydraulic recoiler
Deceleration motor
7.5kw-4 c380v-50H)
Motor for hydraulic station
4kw
Hydraulic pressure
16Mpa
Coil I.D. Min
470mm
Coil O.D. Max
1300mm
Coil width Max
1250mm
Total weight
approx 4 tons
Frequency converter
7.5kw
7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel 1



PLC control cabient
Control system
Panasonic PLC touch
Speed adjuster
YASKAWA Frequency Converter,Japan
Length controller
Encoder (OMROM brand)
Button switch
Schneider brand
Cable connection
aviation plug,easy for connection
Control system power
overload protection
Dimension
700mm x 1000mm x 300mm



7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel 2



Hydraulic station
Hydraulic power
5.5kw
Working pressure
12-16Mp adjustable
Solenoid valve
2 groups
Hydraulic oil
46# hydraulic oil
Quantity
1



7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel 3



Feeding
Feeding type
adjustable
Feeding width range
about 1300mm
Entrance and guide roller
diameter is ¢76mm, material is SAE1045, HRC48-52° surface with chrome
Quantity
1



7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel 4



Forming Section
Main motor power
7.5kw, AC motor, motor inside of main machine
Thickness range
0.3-0.8mm
Transmission
by chains , Model:1inch
Machine Voltage, Frequency, Phase
380 V, 50 Hz, 3Phase
Machine roll forming speed
0-15m/min
Shaft diameter
¢56mm material: SAE1045



7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel 5
Post cutting system
Material of blade
Cr12, 58-62 HRC hardness
Cutting power
hydraulic, 5.5KW
Working pressure
12Mpa adjustable
Length measuring
Automatic encoder length measuring
brand
Omron
Tolerance of length
+/- 1.5mm for each piece end product
The cutting sequence is also contained and controlled by the same PLC program



7.5 Kw Downspout Roll Forming Machine High Speed 0.45 - 0.55mm Galvanized Steel 6



Down pipe elbow machine
control system
Strong electrical current
main motor power
2.2kw
max bend angle
90°
function
bend and fasten at the same time
dimension of the machine
1300 mm×650 mm×1500 mm
speed of bend
0-5m/ min





Quality Control


1. We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.



FAQ


1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: Does one machine can only produce one style panel profile?

A:Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of
