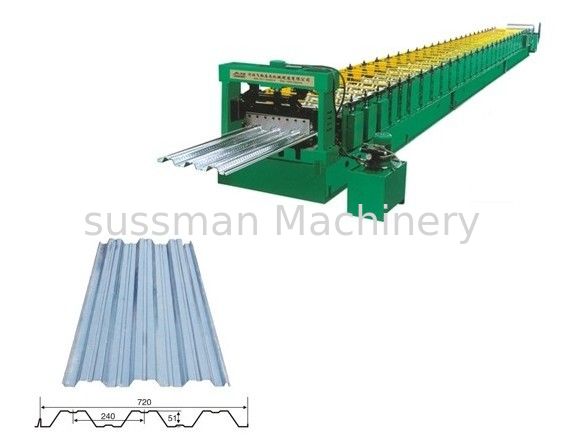

Deck floor roll forming machine
Technical Parameter
Item NO. |
Description |
RF-DF |
1 |
Steel Thickness |
0.5--2.5MM |
2 |
Forming Speed |
15 m/ min |
3 |
Roller stands |
29 stands |
4 |
Roller Material |
high-grade 45# steel |
5 |
Shaft diameter |
90 |
6 |
Main Motor Power |
22 KW |
7 |
Hydraulic cutting Power |
7.5KW |
8 |
Hydraulic pressure |
12 Mpa |
9 |
Power Supply |
380V, 50HZ,3 phase |
10 |
Tolerance |
1.0 MM |
11 |
Material of cutting |
Cr12 |
12 |
Control system |
PLC with touch screen |
Main Components
|
|
|
|
|
|
|
|
|
|
|
Working Flow of Roll Forming Machine
Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting
A. Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)
B. Servo Feeding Applicator............................................To feed the material accurately
C. Hydraulic/Press Punching...........................................To punch as requirements
D. Roll Forming Unit.........................................................To roll form as requirements
E. Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)
F. Output Table................................................................Support the finished products
Loading pictures
Company Profile
Suhang Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile
of roll forming machine.
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
