Product Details:
|
| Name: | Steel Section Profiles Roll Forming Machine | Material: | 0.55-0.8mm Galvanized Steel |
|---|---|---|---|
| Material Thickness: | 0.55-0.8mm | Forming Stations: | 16 Stations |
| Roller Material: | Cr40 Steel With Quenching | Dirve System: | Chain Drive |
| Power Supply: | 380V, 50Hz, 3Phase | Forming Speed: | 5-15m/min |
| Machine Weight: | About 5 Tons | Main Motor Power: | 7.5KW |
| High Light: | c purlin roll forming machine,z purlin roll forming machine |
||
Overall Size 6500mm* 600mm* 800mm Galvanized Light Steel Metal Joist Making Machine
Technical Parameter
|
|
Items |
Specifications |
|
Material of coil |
Material Thickness |
0.6-0.8 mm galvanized |
|
De-coiler |
Weight |
3 ton manual |
|
Forming system |
Rolling Speed |
10-12 m/min |
|
Roller Stations |
About 13 stations forming |
|
|
Roller Material |
Gcr15 Steel with quenching |
|
|
Shaft Material |
45# Steel Diameter 75mm shaft
|
|
|
Maim Motor Power |
5.5 kw |
|
|
Hydraulic cutting Power |
3 kw |
|
|
Cutting system |
Material Of Cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blade |
1 set of cutting blade |
|
|
Electrical control system |
Electric Source |
220V, 60HZ,3 phase
|
|
Control System |
PLC with touch screen Japanese Panasonic and Yaskawa Brand |
|
|
|
Weight |
About 3.5 tons |
|
|
Way Of Drive |
1 inch single chain |
|
|
Size of machine |
Length 6500mm* Width 600mm* Height 800m |
Main Components
|
Machine list |
3 ton passive de-coiler |
1 set |
|
Feeding with guide |
1 set |
|
|
Main roll forming machine |
1 set |
|
|
PLC Control box |
1 unit |
|
|
Hydraulic station |
1 unit |
|
|
Stop cutting device |
1 unit |
|
|
Safety cover |
1 unit |
|
|
Out table |
2 units |
Working Flow of Roll Forming Machine
feedingwithguide—Rollforming——Cutting—Products collecting
Profile

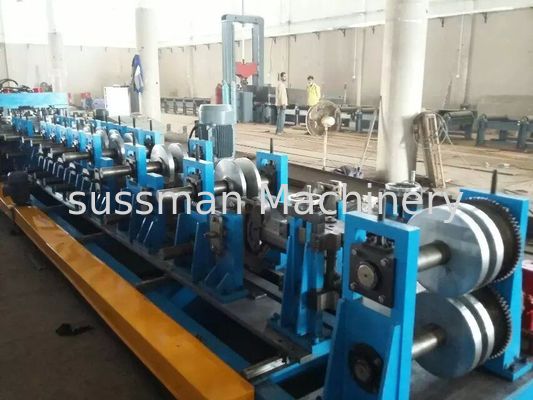

Machine pictures
Quality Control
1.We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.
