|Material:||Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils||Roller Stations:||18 Stations|
|Hydraulic Cutting:||7.5KW||Cutter Material:||Cr12 Steel|
|Main Power:||11kw||Power Supplier:||380V, 50HZ|
|Machine Size:||10.3×1.5×1.2m||Forming Speed:||Up To 15m/min|
c purlin roll forming machine,
c z purlin roll forming machine

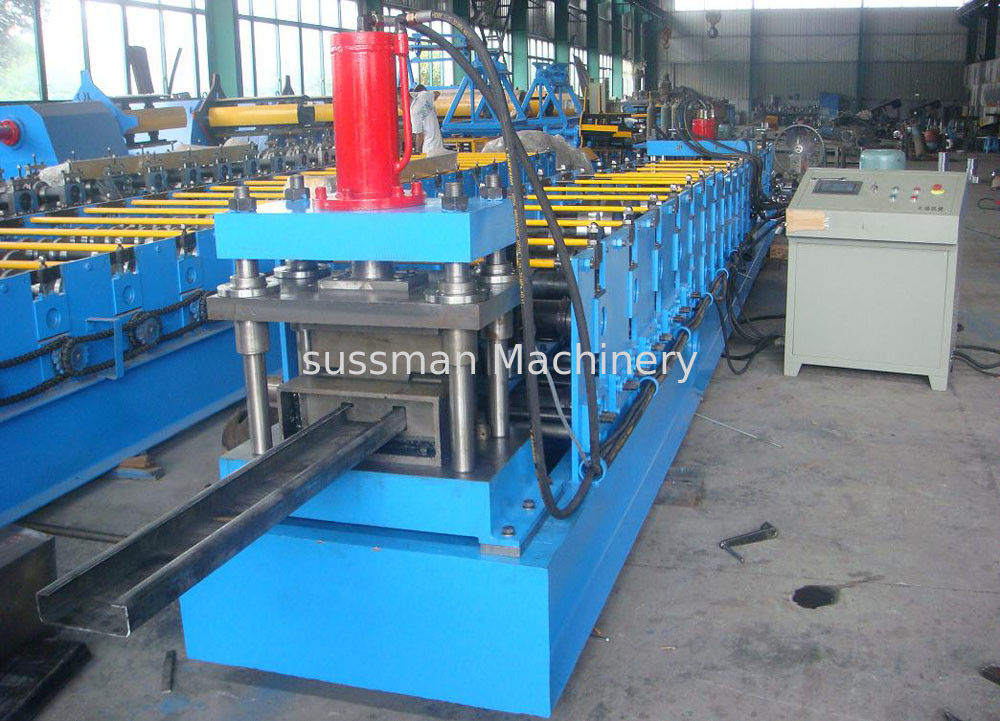

Hydraulic Steel Beam Interchangeable CZ Purlin Roll Former Machine Gear Box Drive
1. Accept customized design
2. Excellent service
4. Technical support for all life
5. High quality control ISO/SGS/CE
C Z Purlin Technical Parameter
Galvanized Steel Coils,Hot Rolled Coils,Cold Rolled Coils
|Size of purlin||80-350mm|
||Main forming stations||18 steps|
|Forming Shaft||diameter 75 mm, 45# steel thermal refining|
|Roller Material||GCR15 bearing steel|
|Blade material||Cr12 mould steel with quenched treatment 60-62°|
|Punch Mould (if needed)||Cr12 quenched|
|Cutting system||Length-set cutting after roll formed|
|Control System||PLC and Inverter|
Decoiler 1 set
Levelling device 1 unit
Punching device 1 unit
Main roll forming machine 1 set
Hydraulic station 1 set
Hydraulic cutting 1 set
Control system 1 set
Run out table 2 units
Decoiler—feeding with guide—leveling—hydraulic punching—cutting— roll forming—runout table
Packaging & Shipping
Payment Terms:The payment shall be made by L/C or T/T ( 30% down-payment and the balance for 70% shall be paid before container loading at the seller`s factory)
Packaging: Main body of machine is naked and covered by plastic film,loaded into container with steel rope and lock catch suitable for long-distance transportation, spare parts are covered by plastic film.
Inquiry and consulting support.
Profile drawing and roll forming solution.
View our Factory.
Warranty: 1 year warranty from date of shipment.
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation.
