Steel Beam Interchangeable CZ Purlin Roll Former Machine Gear Box Drive
  • Steel Beam Interchangeable CZ Purlin Roll Former Machine Gear Box Drive
  • Steel Beam Interchangeable CZ Purlin Roll Former Machine Gear Box Drive
Steel Beam Interchangeable CZ Purlin Roll Former Machine Gear Box Drive

Steel Beam Interchangeable CZ Purlin Roll Former Machine Gear Box Drive

Place of Origin China
Brand Name Sussman
Certification SGS.CE.ISO
Model Number SM-CZ
Product Details
Material:
Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils
Roller Stations:
18 Stations
Hydraulic Cutting:
7.5KW
Cutter Material:
Cr12 Steel
Main Power:
11kw
Power Supplier:
380V, 50HZ
Machine Size:
10.3×1.5×1.2m
Forming Speed:
Up To 15m/min
Weight:
10 Tons
Highlight:

c purlin roll forming machine

,

c z purlin roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
film and steel
Delivery Time
75 days
Payment Terms
L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability
10 sets per month
Product Description

Hydraulic Steel Beam Interchangeable CZ Purlin Roll Former Machine Gear Box Drive

Specification

1. Accept customized design

2. Excellent service

4. Technical support for all life

5. High quality control ISO/SGS/CE


 C Z Purlin Technical Parameter



Item Parameter
Material

Galvanized Steel Coils,Hot Rolled Coils,Cold Rolled Coils
Size of purlin 80-350mm

Power
Specs

 Voltage 380V/3PH/50HZ
Main Motor 11kw
Hydraulic motor 7.5kw
Hydraulic pressure 10-12MPa





Machine
Specs

 Main forming stations 18 steps
Forming Shaft diameter 75 mm, 45# steel thermal refining
Roller Material GCR15 bearing steel
Blade material Cr12 mould steel with quenched treatment 60-62°
Punch Mould (if needed) Cr12 quenched
Forming Speed 0-15m/min
Cutting system Length-set cutting after roll formed
Control System  PLC and Inverter



Main Components

Decoiler 1 set
Levelling device 1 unit
Punching device 1 unit
Main roll forming machine 1 set
Hydraulic station 1 set
Hydraulic cutting 1 set
Control system 1 set
Run out table    2 units


Working Flow


Decoiler—feeding with guide—leveling—hydraulic punching—cutting— roll forming—runout table

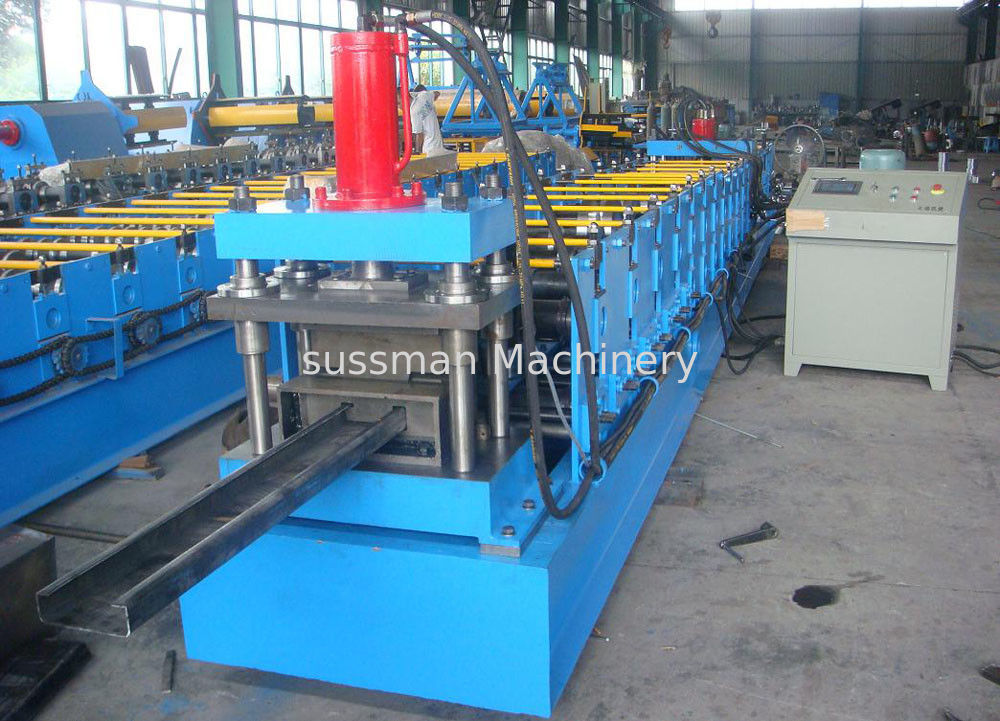

Machine Photo
Steel Beam Interchangeable CZ Purlin Roll Former Machine Gear Box Drive 0



Packaging & Shipping

Payment Terms:The payment shall be made by L/C or T/T ( 30% down-payment and the balance for 70% shall be paid before container loading at the seller`s factory)
Packaging: Main body of machine is naked and covered by plastic film,loaded into container with steel rope and lock catch suitable for long-distance transportation, spare parts are covered by plastic film.
Delivery Time:75days.

Our Service

Pre-Sales Service

Inquiry and consulting support.
Profile drawing and roll forming solution.
View our Factory.
After-Sales Service

Warranty: 1 year warranty from date of shipment.
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation.
