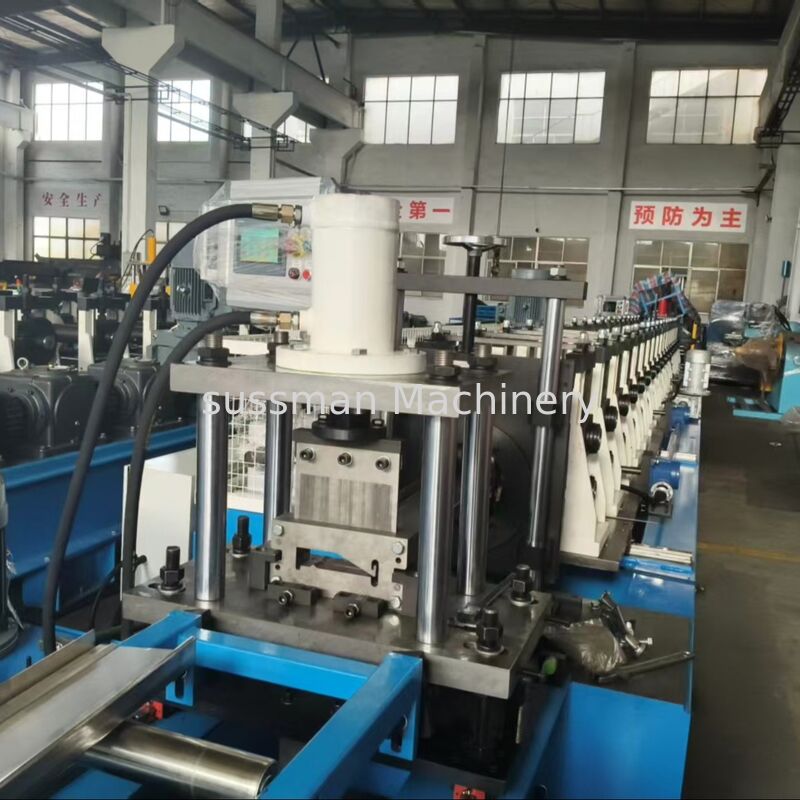

Malaysia 14 Gauge Galvanized Steel Automatic Adjustable Width Ladder Cable Tray Plate Roll Forming Machine
1. Ladder Cable Tray Roll Forming Machine Technical Parameter
| 1 |
Suitable to process |
Galvanized steel |
| 2 |
Width of the plate |
As profile |
| 3 |
Thickness of the plate |
1.5-2.0mm |
| 4 |
De-coiler |
Passive one, can load 5 tons raw material |
| 5 |
Rollers for forming |
About 18 rollers |
| 6 |
Diameter of the roller |
Φ75mm |
| 7 |
Rolling material |
High Grade Steel 45# |
| 9 |
Productivity |
About 5-6m/min |
| 10 |
Cutting method |
Hydraulic cutting |
| 11 |
Material of the cutting blade |
Cr12Mov |
| 12 |
Hydraulic cutting power |
5.5kw |
| 13 |
Processing precision |
Within 1.50mm |
| 14 |
Control system |
Siemems PLC control |
| 15 |
Main structure of the machine |
350 H steel |
| 16 |
Weight |
About 18 T |
| 17 |
Dimensions |
12*0.85*1.1m |
| 18 |
Voltage |
220V 60Hz 3phase or according to clients' request |
2.Ladder Cable Tray Machine’s Components
| Item |
Components Name |
Quantity |
| 1 |
5T Passive Decoiler |
1 set |
| 2 |
Roll Forming Machine |
1 set |
| 3 |
Hydraulic Station |
1 set |
| 4 |
PLC Control Cabinet |
1 set |
| 5 |
Cutting Blade |
1 set |
| 6 |
Out Table |
1 set |
| 7 |
Safety Cover |
1 pc |
| 8 |
Punching machine |
1 set |
| 9 |
Other Spare Parts |
1 set |
3. Ladder Cable Tray Profile
4.Application
Cable tray roll forming machine is commonly used for cable management in commercial and industrial construction.
This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray,
Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc.
with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel,
stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm.
You could set up 10 different lengths for cable tray.Welcome to consult more details about it.
