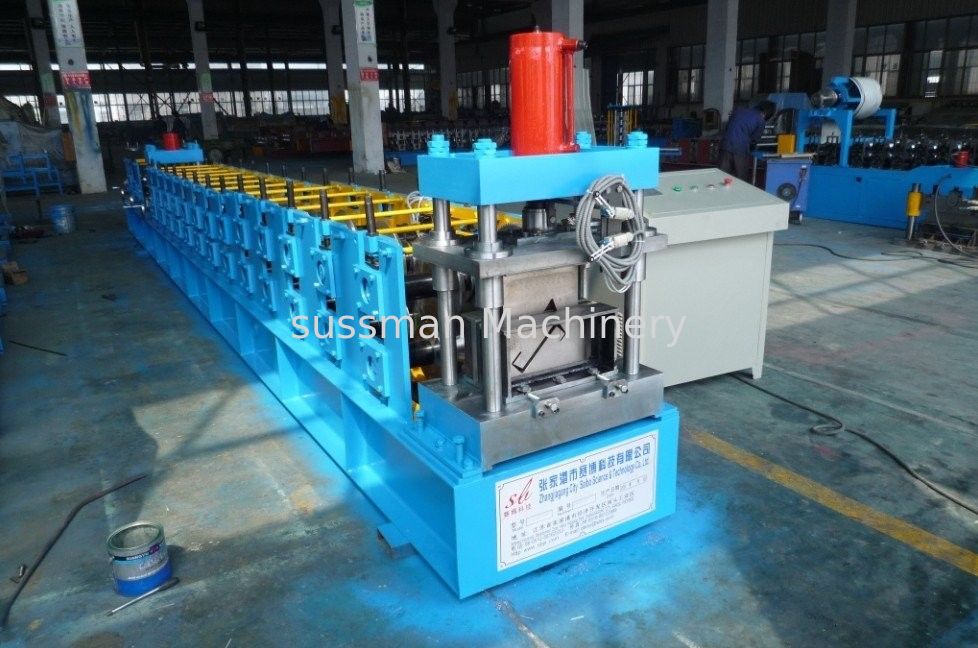

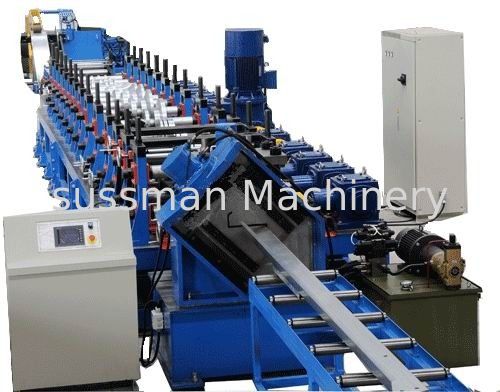

Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M
  • Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M
  • Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M
  • Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M
  • Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M

Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE
Model Number SS - CZ
Product Details
Size:
10.3×1.5×1.2
Gross Weight:
15 T
Driving System:
Gear Box Drive
Speed:
10m/min
Electric Motor:
11kw
Hydrodynamic Station Cut:
7.5KW
High Light:

c purlin roll forming machine

,

z purlin roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
USD + ( 30000,49500)+Set
Packaging Details
Standard film
Delivery Time
60 days
Payment Terms
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 + Set + Per month
Product Description



Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M



Parameter



Thickness 1.5-3.0mm
Speed 10m/min
Material of the roller steel Cr15
Roller 20 stations
Principal axis steel No.45
Electric motor 11kw
Hydrodynamic station cut 7.5KW
Drive-by-wire system PLC industrial computer
Size 10.3×1.5×1.2
Gross weight 15 T
Driving system gear box drive



Machine list



Machine list 3 ton passive Uncoiler 1 set
Main roll forming machine 1 set
Control box 1 unit
Hydraulic station 1 unit
Out table 1500mm 2 unit
Hydraulic punching and cutting device 2 unit
Hydraulic cutting device 1 unit



Festures



1. This machine adopts the material shelf with a style of cantilever and opening umbrella to put material with no dynamic force. It can adjust the end of the screw mandrel of the material shelf to fit in with steel of different apertures. Easy to operating and its speed of putting materials and the main mounding machine is in phase.



2. This machine adopts Seven Rolls level correction, roll arbors adopt high-quality alloyed steel 40Cr, made with a heat treatment, and it has a perfect effectiveness of level correction to defect band steel.



3. The roller of the principal machine adopts the bearing steel GCr15 to strike, distressing to annealing, quenching, tempering, and Parkerizing, such heat treatment process.



4. The set of machine change the specification by using semicircle retaining ring to adjust. It is convenient for the workers to operate them.



5. Punching structure is of a high-degree automatically system, under the control of computers which have been set beforehand, it can finish wherever technical punching with ease.



Machine list



Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M 0



Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M 1



Gear Box Drive C Channel Roll Forming Machine With 10.3 × 1.5 × 1.2 M 2
