| Material Thickness: | 1.5-3.0mm | Width: | 80-300mm |
|---|---|---|---|
| Cutter Material: | Cr12Mov Steel | Power Supplier: | 380V Or Customized |
| Cutting System: | Post Cutting | Roller Stations: | 18 Stations |
| Hydraulic Cutting: | 7.5KW | Product Name: | C Channel Steel Roll Forming Machine |
| High Light: | c z purlin roll forming machine,z purlin roll forming machine |
||

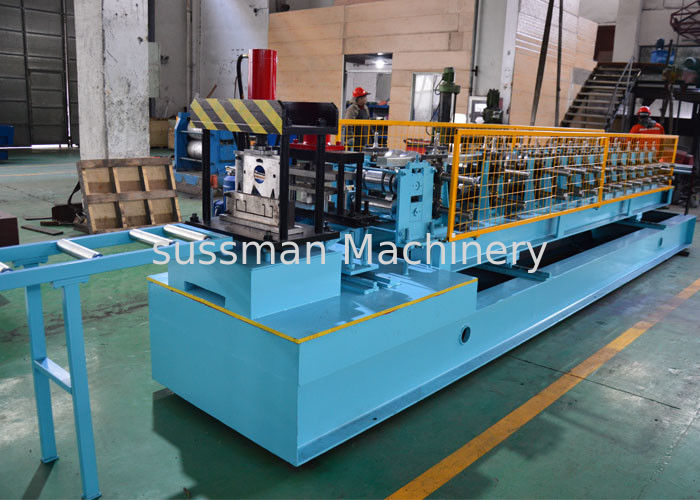

C Lip Mild Steel Purlin Machine , C Lipped Channel Roll Forming Machine
These purlins machine are manufactured by quality approved raw materials under our experienced professionals techniques. The offered purlins are extensively used in the construction of buildings and can be made in various shapes, sizes and thickness.
|
Material of coil |
Material Thickness |
1.5-3.0mm |
|
|
Width |
from 80mm to 300mm |
|
|
Height |
40-100mm |
|
De-coiler |
Weight |
3 ton manual decoiler |
|
Forming system |
Rolling Speed |
0-12 m/min |
|
Roller Stations |

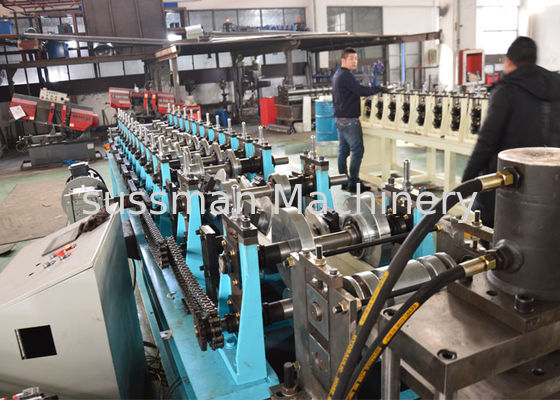

About 18 stations forming |
|
|
Roller Material |
Gcr15 Steel with quenching |
|
|
Shaft Material |
45# Steel Diameter 76mm shaft |
|
|
Main Motor Power |
11KW |
|
|
Hydraulic cutting Power |
7.5KW |
|
|
Cutting system |
Material Of Cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blade |
1 set of cutting blade |
|
|
Electrical control system |
Electric Source |
380V, 50HZ, 3phase |
|
Control System |
PLC with touch screen |
|
|
Weight |
About 6 tons |
|
|
Way Of Drive |
Chain driven |
C Z Purlin Technical Parameter
|
Equipment name |
Quantity |
|
3T passive uncoiler |
1 set |
|
Main roll forming machine |
1 set |
|
Hydraulic post cutting |
1 set |
|
Hydraulic punching |
1 set |
|
Hydraulic station |
1 set |
|
4 meters out tables |
1 set |
|
Control box |
1 unit |
Working Flow
Decoiler—feeding with guid— roll forming----punching&cutting—run out table
Each part of machine
1.3T Passive De-coiler
Diameter: 460-520mm expansion.
Capacity: 3000kg
Max Coil Width: 500mm
2.Leveling device
Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up ,it can guarantee that the products are neat, parallel and everything is uniformity.
7 rolls leveling, 3 rolls up and 4 rolls down
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
3. Punching and cutting device
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine
cutting blade material:Cr12 Mov steel with high treatment
hydraulic station pressure: 20 MPa
Hydraulic coil:46#
4.Control Box:
(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.
If there are any other customized machines that you are interested in, please contact us for further discussion. We will provide you for the most suitable machine solution for your market.
