Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
0.5-1.5mm Galvanized Steel Stud Track Roll Forming Machine With Following Cutting
If you need to more efficiency then we recommend you adpot the servo flying shear with no stop system
The Max. whole line speed can be reached at 30-50m/min.
If you want to produce more than one profile in one machine, we recomend you the double rows forming machine and triple rows forming machine to save space and economy, we called 2 in one and 3 in one machine.
1. Technical Parameter
|
Stud Track and Channel Roll Forming Machine |
||
|
No. |
Item |
Specification |
|
1 |
Suitable material |
Type:Galvanized Coil, PPGI, Carbon steel Coil |
|
|
|
Thickness(mm):0.5-1.5 |
|
|
|
Yield strength: 250 - 550MPa |
|
|
|
Tensil stress( Mpa):G350Mpa-G550Mpa |
|
2 |
Nominal forming speed(m/min) |
30-50 |
|
3 |
Forming station |
13 |
|
4 |
Decoiler |
Manual decoiler |
|
5 |
Main machine motor |
Famous China brand |
|
6 |
PLC brand |
Delta |
|
7 |
Inverter brand |
Yaskawa |
|
8 |
Driving system |
Chain drive |
|
9 |
Rollers’ materail |
Steel #45 |
|
10 |
Station structure |
Wall panel station |
|
11 |
Punching system |
No |
|
12 |
Cutting system |
Post-cutting |
|
13 |
Power supply requirement |
380V 50Hz |
|
14 |
Machine color |
Industrial blue |
2. Machine Components
| 3T passive decoiler | 1 set |
| Hydraulic cutting | 1 set |
| Roll forming machine | 1 set |
| Servo following cutting device | 1 set |
| Control box system | 1 unit |
| Out tables | 1 unit |
| Safety cover | 1 unit |
| Tool box | 1 package |
3. Application
1. Underground, air port, bus station
2. Building lobby,metro station
3. Supermarket, marketplace
4. Hotel, restaurant,railway station
5. commercial building
4. Machine picture

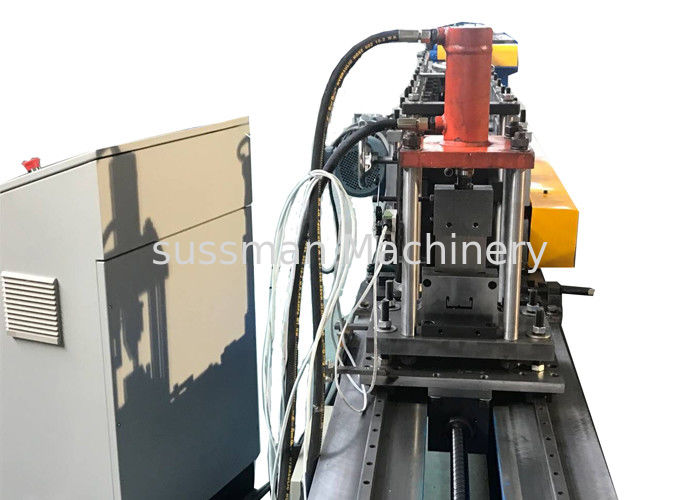

Main roll forming machine
