C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized
  • C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized
  • C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized
  • C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized
  • C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized
  • C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized

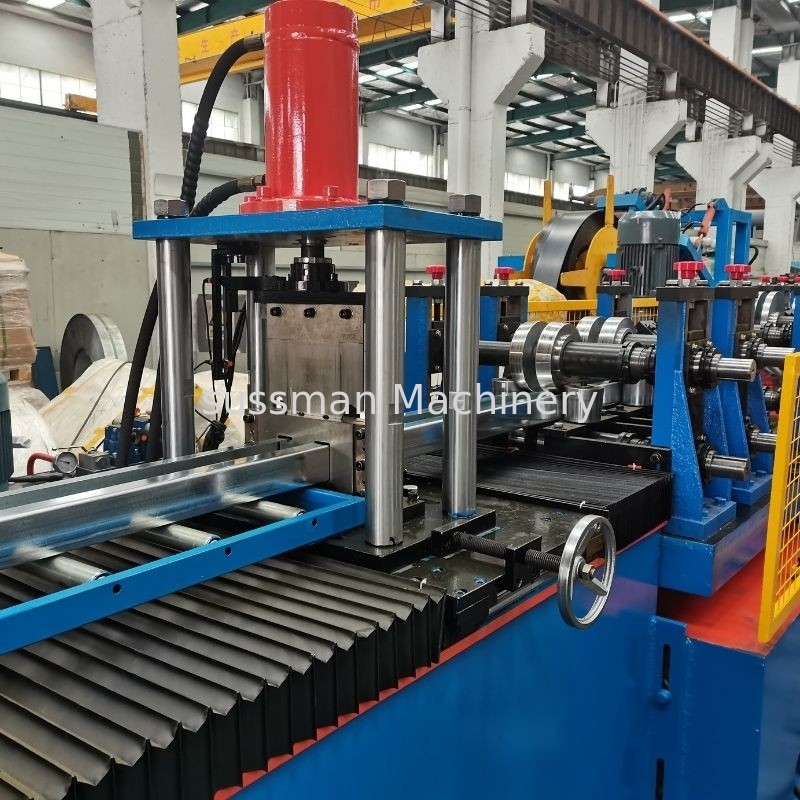

C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Type:
Width Adjust C Purlin Roll Forming Machine
Thickness:
1.0-2.0mm
Cutting Method:
Non Stop Cutting
Width:
100-160mm Adjust Automatically
Main Power:
11KW
Hydraulic Motor Power:
4KW
Rolling Speed:
0-30 M/min With Driven Chain
High Light:

C Profile Purlin Roll Forming Machine

,

11KW Stud Track Roll Forming Machine

,

100mm C Profile Purlin Stud Track Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

100-160mm Width Adjustable 1.0-2.0mm Thickness Galvanized Steel Structure C Profile Purlin Roll Forming Machine




1. Technical Parameter



No.

Item

Unit

Parameter





1

Material

Thickness of Material

mm

1.0-2.0mm GI,GL,G550



2

Material Width

mm

As profile

Coil Weight

tons

3T

3

Production Speed

m/min

0-30m/min(common)

4

Product

mm

100-160



5

Roller Material



GCr15 steel with quenched

Roller Stations



15 Stations

6

Driving Type



By Chain

7

Motor Power

kW

11kW

8

Brand of Electric Control System



Delta or Schneider or Siemens

9

Dimension(L*W*H)

m

About 9500*1100*1200mm





2. Machine Components



3T hydraulic  decoiler

1 set

Feeding with guide

1 set

Main roll forming machine

1 set

Hydraulic station

1 set

Electric control system

1 unit

4M manual out table

1 unit

Safety cover

1 unit

Spare parts

1 package



3. Application



C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery. It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel.
The C-shaped steel wall is thin and light, with excellent cross-sectional performance and high strength. Compared with traditional channel steel, the same strength can save 30% of the material.

C Section Structural Purlins are mainly used for steel structure warehouse, workshop, hangar, garage, poultry house, container house, prefabricated home, high-rise building for office, shopping mall, hospital, dormitory, school, bus station, railway station, bridge, etc.

C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized 0

C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized 1



4. Our service



1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc





5.Machine picture


C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized 2

C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized 3

C Profile Purlin Stud Track Roll Forming Machine 100mm 11KW Galvanized 4


Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.
