Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
Automatically Galvanized Steel 100-160mm Width Adjustable C Profile Channel Roll Forming Machine
1. Technical Parameter
|
No. |
Item |
Unit |
Parameter |
|
|
1 |
Material |
Type |
|
GI,GL,G550 |
|
Thickness of Material |
mm |
1.0-2.0mm |
||
|
2 |
Material Width |
mm |
As Required |
|
|
Coil Weight |
tons |
3T |
||
|
3 |
Production Speed |
m/min |
0-30m/min(common) |
|
|
4 |
Product |
mm |
100-160 |
|
|
5 |
Roller Material |
|
Cr15 |
|
|
Roller Stations |
|
15 Stations |
||
|
6 |
Driving Type |
|
By Chain |
|
|
7 |
Motor Power |
kW |
11kW |
|
|
8 |
Brand of Electric Control System |
|
Delta or Schneider or Siemens |
|
|
9 |
Dimension(L*W*H) |
m |
About 9500*1100*1200mm |
|
2. Machine Components
|
3T hydraulic decoiler |
1 set |
|
Feeding with guide |
1 set |
|
Main roll forming machine |
1 set |
|
Hydraulic station |
1 set |
|
Electric control system |
1 unit |
|
4M automatic table |
1 unit |
|
Safety cover |
1 unit |
|
Spare parts |
1 package |
3. Application
C Section Structural Purlins are mainly used for steel structure warehouse, workshop, hangar, garage, poultry house, container house, prefabricated home, high-rise building for office, shopping mall, hospital, dormitory, school, bus station, railway station, bridge, etc.
C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery. It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel.
The C-shaped steel wall is thin and light, with excellent cross-sectional performance and high strength. Compared with traditional channel steel, the same strength can save 30% of the material.
4. Working flow
Decoiler--feeding with guide--roll forming-- hydraulic cutting- out put tables
5.Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc

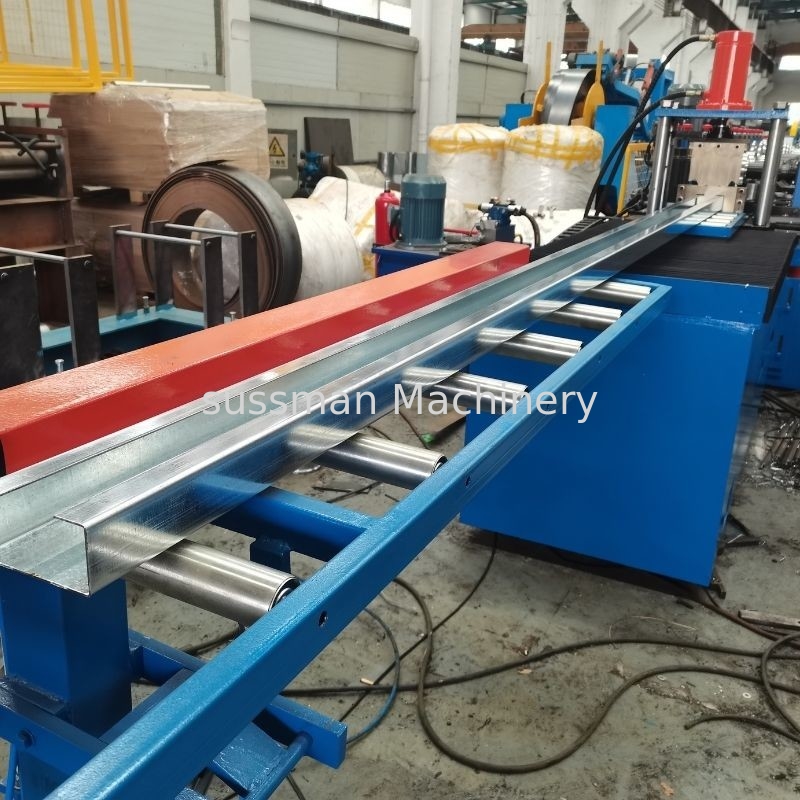

6.Machine picture
Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.
