Automatic Metal Material Folding Slitting Line Machine For 1-5mm Galvanized Steel

China Automatic Metal Material Folding Slitting Line Machine For 1-5mm Galvanized Steel supplier

Large Image :  Automatic Metal Material Folding Slitting Line Machine For 1-5mm Galvanized Steel

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-DF

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD35999-45999 Per Set
Packaging Details: Film and steel
Delivery Time: 50 days after deposit
Supply Ability: 5 SETS PER MONTH
Contact Now
Detailed Product Description
Style: Cut To Lenth Machine Material: 0.2-0.8 Mm Galvanized Coil
Width Of Coiled Plate: 1650mm Working Speed: 15-30m/min
Decoiler Capacity: 10T Material Of Blade: 40Cr
Width Tolerance: ≤±0.1 Mm



Automatic Metal Material Folding Slitting Line Rolling Forming Machine For 1-5mm Galvanized Steel










Technical Data



NO. Name Unit Parameters
1 Control model   Frequency conversion control
2 Materials   Cold rolled steel, Galvanized steel
3 Thickness mm 0.2-0.8
4 Width mm 1250
5 Coil I.D. mm 480-520 customized
6 Coil O.D. mm ≤1400
7 Weight T 5
8 Slitting blade diameter mm Φ120
9 Blade specification mm Φ220×Φ120×10
10 Material of blade   40Cr
11 Number of blade pcs 22
12 Slitting number pcs 12, width≥25mm
11 Line speed m/min ≤40
12 Power of decoiler KW 7.5
13 Power of slitting machine KW 7.5
14 Power of recoiler KW 11
15 Width tolerance   ≤±0.1 mm
16 The direction of whole line   from right to left, the operate table faces the machines
17 Power   380V/3Ph/50Hz( Customized)
18 Operation people   1 technician and 1 general worker
19 Color   green ( or Customized)






Details of Each Composition

  • Mechanical electrical de-coiler

Structure: four connection rods adjust manually and mechanically and the motor drives the steel coils doing uncoiling. Specification: 508×1250(width of roller)

  • Leveler

◆It is composed of 17 working roller, driving device, 2 pinch code rollers and machine frame.

◆the function of supporting roller: make the even rollers receive the balanced force and reduce the friction of the leveling rollers

◆Drive model: all the independent rollers and gear box are driven by 30kw frequency conversion

  • 1x1500 cutting machine

◆shear model: cut from up to down hydraulically.

◆Cooperate with the signal direct from the feeder

and shear automatically

◆Adopt gap adjusting design to cut the materials and can shear 1mm steel plate safely .



  • Receible table

◆It is welded by steel(6m)



  • Hydraulic Control System

◆Ensure the using of hydraulic parts

◆The working pressure of the hydraulic system is 6.3-16Mpa

◆Hydraulic tank capacity is 100 liters

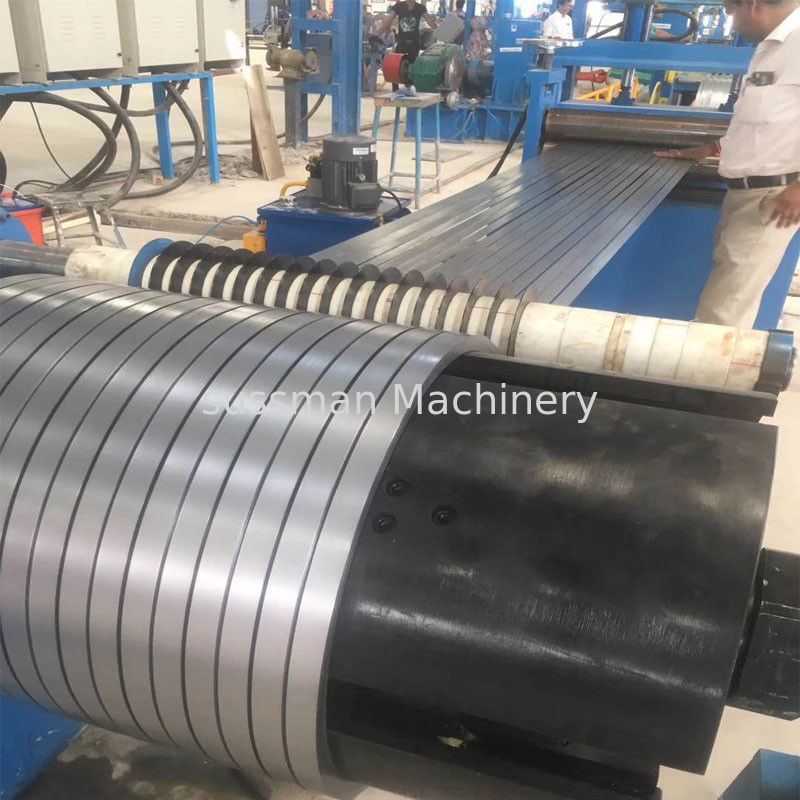

Machine photos
Automatic Metal Material Folding Slitting Line Machine For 1-5mm Galvanized Steel

Automatic Metal Material Folding Slitting Line Machine For 1-5mm Galvanized SteelAutomatic Metal Material Folding Slitting Line Machine For 1-5mm Galvanized Steel
