High Speed Steel Slitting Lines , Metal Slitting Machine Frequency Conversion Control
  • High Speed Steel Slitting Lines , Metal Slitting Machine Frequency Conversion Control
  • High Speed Steel Slitting Lines , Metal Slitting Machine Frequency Conversion Control
  • High Speed Steel Slitting Lines , Metal Slitting Machine Frequency Conversion Control
High Speed Steel Slitting Lines , Metal Slitting Machine Frequency Conversion Control

High Speed Steel Slitting Lines , Metal Slitting Machine Frequency Conversion Control

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-DF
Product Details
Style:
Slitting Machine
Control Model:
Frequency Conversion Control
Materials:
Cold Rolled Steel, Galvanized Steel
Thickness:
0.2-0.8
Width:
1250mm
Name:
Metal Slitting Machine
Highlight:

Steel Coil Slitting Line

,

Metal Slitting Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD25999-65999 Per Set
Packaging Details
Film and steel
Delivery Time
50 days after deposit
Supply Ability
5 SETS PER MONTH
Product Description

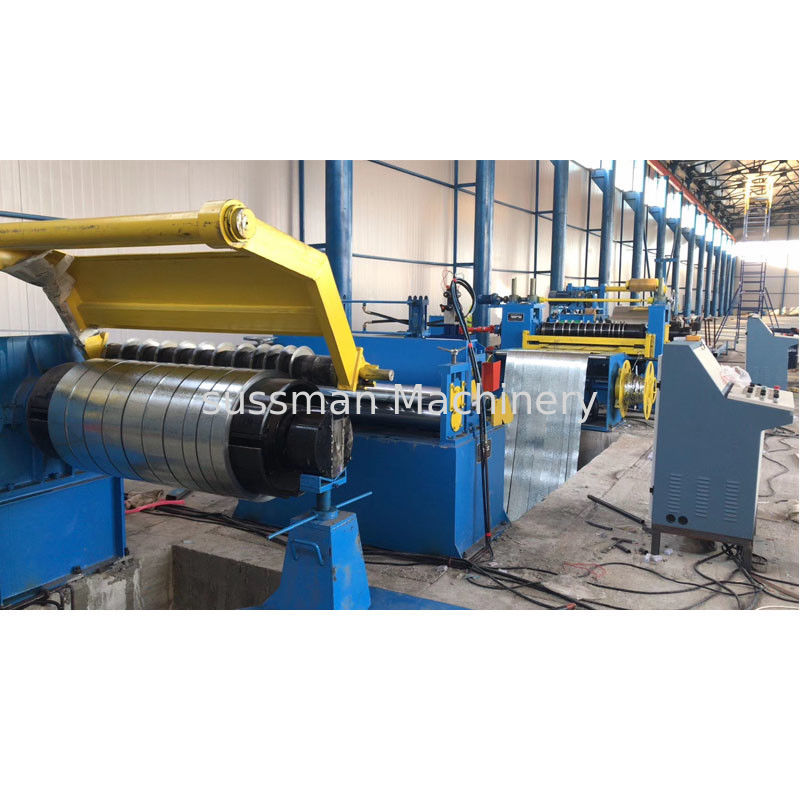

High Speed High Quality Slitting Line Machine Slitting Line Machines



Automatic slitting line is a complete line to slit the big steel coil into strips and then rewinding by PLC , it can slit various
size you need. It can slit cold rolled steel, Galvanized steel, Stainless steel, Hot rolled steel , etc..



Automatic slitting line is composed as coil car,decoiler,pinch device,head cutter,slitter,scrap winder,tension stand ,recoiler and exit coil car.The speed can be max 120m/min.











Standard specifications of automatic slitting line(if other size,can be customlized)
Model
Thickness(mm)
Width(mm)
No. of slitting
Tolerance(±mm/m)
Speed(m/min)
Weight(T)
SM-2X650
0.2-2
100-650
10-30
±0.05
0-120
10
SM-2X1250
0.2-2
500-1250
10-30
±0.05
0-120
10,15
SM-3X1250
0.3-3
500-1250
65-30
±0.05
0-120
10,15
SM-3X1600
0.3-3
500-1600
5-30
±0.05
0-120
15,20
SM4X1600
0.5-4
500-1600
5-30
±0.05
0-100
20,25
SM-6X1600
1-6
500-1600
5-20
±0.1
0-80
20,25
SM-8X2000
3-8
800-2000
5-15
±0.1
0-40
25,30
SM-10X2000
3-10
800-2000
5-10
±0.1
0-40
25,30
SM-12X2000
4-12
800-2000
5-10
±0.1
0-30
25,30
SM-16X2200
6-16
800-2200
4-8
±0.1
0-20
30,35
Standard specifications of simple hydraulic slitting line(if other size,can be customlized)
Model
Thickness(mm)
Width(mm)
No. of slitting
Tolerance(±mm/m)
Speed(m/min)
Weight(T)
SM-1.5X650
0.2-1.5
100-650
5-15
±0.05
0-40
5
SM-1.5X1250
0.2-1.5
500-1250
5-15
±0.05
0-40
5,10
SM-2X1250
0.2-2
500-1250
5-15
±0.05
0-40
5,10
SM-3X1250
0.3-3
500-1250
5-15
±0.05
0-40
10
SM-3X1600
0.3-3
500-1600
5-15
±0.05
0-30
10,15
SM-4X1250
0.5-4
500-1250
5-15
±0.1
0-30
10
SM-4X1600
0.5-4
500-1600
5-15
±0.1
0-30
10,15,20

Tags:

Metal Slitting Machine,

Steel Coil Slitting Line,

Steel Slitting Machine
