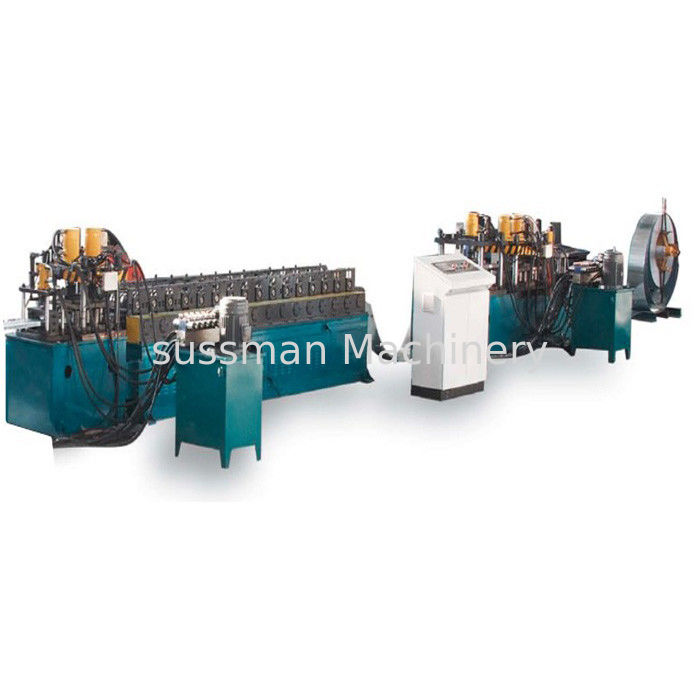

Smoke Fire Damper Metal Fabrication Rollformers With 14 Stations

Smoke Fire Damper Metal Fabrication Rollformers With 14 Stations
Smoke Fire Damper Metal Fabrication Rollformers With 14 Stations Smoke Fire Damper Metal Fabrication Rollformers With 14 Stations Smoke Fire Damper Metal Fabrication Rollformers With 14 Stations

Large Image :  Smoke Fire Damper Metal Fabrication Rollformers With 14 Stations

Product Details:

Place of Origin: WUXI CHINA
Brand Name: SUSSMAN
Certification: CE
Model Number: SS-FD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD50000-USD69500 per set
Packaging Details: standard packing
Delivery Time: 65-75 days after deposit
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Detailed Product Description
Material: 1.0-1.5 Mm Galvanized Coils Rolling Speed: About 10m/min
Roller Stations: About 14 Stations Roller Material: Gcr15 Coated With Chrome
Material Of Cutting: CR12mov With Quench Treatment Control System: PLC Delta
Weight: About 8 Tons Way Of Drive: 1.2 Inch Chain
High Light:

metal fabrication rollformers

,

smoke fire damper rollformers

,

14 stations rollformers

Smoke Fire Damper Metal Fabrication Equipment Roll Forming Machine With Chain Drive



Fire damper is temperature control of the memory melting alloy, which is closed by the action of gravity and the action of the spring mechanism. In the new products, the memory alloy is used to deform the valve to close the valve.

Its function is: when the temperature of the flue gas reaches 280 , the person has evacuated, the smoke exhaust has no practical significance, and the flue gas has been fired at this time, the valve is automatically closed to avoid the spread of fire.



Technical Parameter





  Items Specifications
Material of coil Material Thickness 1.0-1.5 mm galvanized coils
  Un Coiler 3 tons hydraulic
Forming system Rolling Speed About 10m/min
  Roller Stations About 14 stations
  Roller Material

Gcr15 coated with chrome



  Maim Motor Power 7.5kw
  Motor cutting Power 5.5kw

Cutting

system

Material Of Cutting CR12mov with quench treatment
  Hardness HRC58-62
  Tolerance +-1.5mm
  Cutting blades 3 sets
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s requirey

  Control System PLC Delta as list in the note
  Weight About 8 tons
  Way Of Drive 1.2 inch chain



Fire Damper Main Components



     S.N

   Equipment name


   Quantity
      1.

    5T passive un-coiler


    1 set
      2.

    Main roll forming machine



    1 set
      3.

    Hydraulic cutting


    1 set
      4.

    Control system (including control box)


    1 set
      5.

    Punching


    2 sets


















Working Flow



Uncoiling—feeding with guide—Servo feeding——hydraulic Punching—Roll forming—Cutting ——Products collecting
