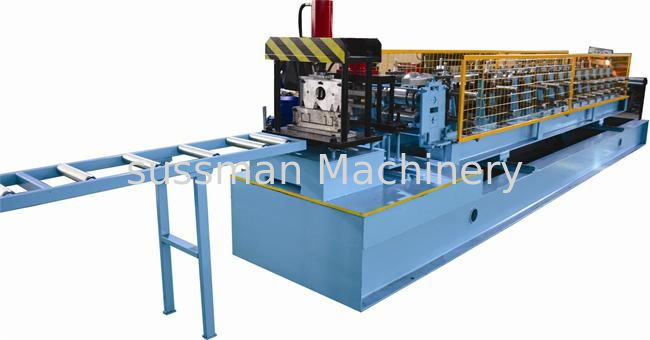

11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing

11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing
11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing

Large Image :  11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: SM-RG

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD25000-35000 per set
Packaging Details: Film and steel
Delivery Time: 75 days after deposit
Payment Terms: L/C, D/P, T/T
Supply Ability: 10 sets/month
Detailed Product Description
Forming Thickness: 1.5-3mm Forming Speed: 10-15m/min
Forming Stations: 20 Stations Main Motor Power: 11kw
Raw Material: Galvanized Steel Sheet, Black Steel Roller Material: 45#forge Steel, Coated With Chrome
Shaft Diameter: 70mm, Material Is 45# Forge Steel Weight: 10 Tons
Cutting: Hydraulic Stop Cutting Punching: Post Punching
High Light:

3mm CZ Purlin Roll Forming Machine

,

11kw CZ Purlin Roll Forming Machine

,

10m/min CZ Purlin Roll Forming Machine



Width adjustable Post cutting C Purlin Roll Forming Machine for steel framing



1. Technical Parameter

Gutter roll forming machine
No. Item Specification Optional
1 Suitable material Type:Galvanized Coil, PPGI, Carbon steel Coil
    Thickness(mm):1.5-3mm
    Yield strength: 250 - 550MPa
    Tensil stress( Mpa):G350Mpa-G550Mpa
2 Nominal forming speed(m/min) 8-10 Or according to your requirement
3 Forming station 20 According to your profile
4 Decoiler Manual decoiler Hydraulic decoiler or double head decoiler
5 Main machine motor China famous brand Siemens
6 PLC brand Delta Siemens/Panasonic
7 Inverter brand Yaskawa
8 Driving system Chain drive Gearbox drive
9 Rollers’ materail Steel #45 GCr15
10 Station structure Iron casting



Forged Iron station
Or Wall panel structure



11 Punching system Yes  Hydraulic punching station or Punching press
12 Cutting system Post-cutting Pre-cutting
13 Power supply requirement 380V 50Hz Or according to your requirement
14 Machine color Industrial blue Or according to your requirements




2. Flow Chart

Uncoiling – Infeed Guiding– Roll forming – Hydraulic cutting – Run-out table


 11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing 0



3. Machine Components and profile drawing

The portable gutter roll forming machine comprised of 3T manual uncoiler, infeed guiding, roll forming machine, cutting equipment, hydraulic system, electrical controlling system, output table and portable device.



11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing 1




4. C  Purlin Machine Description


Gutter roll forming machine is suitable for companies who work on Steel system. Machineable thickness of gutter could be 1.5-3mm or as you request with raw material:Aluminum, Galvanized steel, Painted steel, Galvalume and Cooper etc. We will design the machine according to your profile drawing.We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need. Whichever line you choose, the quality of Linbay Machinery will ensure you obtain perfectly functional profiles.





11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing 2






5. C Machine Photo


 11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing 3

11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing 4

11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing 5

11kw 10m/Min Cz Purlin Roll Forming Machine For Steel Framing 6
