Stainless Steel U Shape 10m/Min Cold Roll Forming Machine
  • Stainless Steel U Shape 10m/Min Cold Roll Forming Machine
  • Stainless Steel U Shape 10m/Min Cold Roll Forming Machine
  • Stainless Steel U Shape 10m/Min Cold Roll Forming Machine
Stainless Steel U Shape 10m/Min Cold Roll Forming Machine

Stainless Steel U Shape 10m/Min Cold Roll Forming Machine

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Material Thickness:
2-4mm Galvanized Coil
Forming Speed:
10-15m/min
Roller Stations:
19 Stations
Roller Material:
GCr15, Coated With Chrome
Hydraulic Cutting Power:
5Kw
Main Motor Power:
20Kw
Way Of Drive:
1.5 Inch Double Chain
Tolerance:
±1mm
High Light:

10m/Min Cold Roll Forming Machine

,

2mm Cold Roll Forming Machine

,

20Kw Cold Roll Forming Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 25000-USD 32000 per set
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Supply Ability
10 sets/month
Product Description

High Speed Cold Roll Forming Machine For Stainless Steel U Shape Roll Forming Machine With Chain Drive





Description
Stud and Track Roll Forming Machine, as known as Hat Shape Roll Forming Machine, Main Channel Roll Forming Machine, Omega Furring Channel Roll Forming Machine, Wall angle Roll Forming Machine, Ceiling Roll Forming Machine Light Steel Keel Roll Forming
Machine etc.
These can produce studs, tracks and many other shapes derived form Shape C.
Thickness is normally 0.25-1.2mm .
If you need to more efficiency then we recommend you adpot the Flying shear with No-stop system. Max line speed can be reach at 40m/min.
If you want to produce more than one profile in one machine, we recommend you the double rows forming machine and triple rows forming machine to save space and economy.

Technical Specification

Items
Specifications
Material of coil
Material Thickness
0.3-1.2mm galvanized steel
Forming system
Rolling Speed
8-15 m/min
Roller Stations
About 13 stations forming
Roller Material
Cr40 Steel with quenching
Shaft Material
45# Steel Diameter 75mm shaft
Main Motor Power
7.5 KW
Hydraulic cutting Power
4 KW
Way Of Drive
1 inch single chain
Cutting System
Material Of Cutting
CR12 with quench treatment
Hardness
HRC58-62
Tolerance
+-1.5mm
Cutting blade
1 set of cutting blade
Electrical control system
Electric Source
380V , 50HZ, 3 phases
Control System
PLC Delta

Weight
About 4 tons

Size of machine
7500* 600* 800m
Working Flow
Decoiler—feeding with guide—Roll forming—punching&Cutting—Products collecting

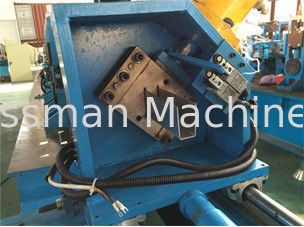

Stainless Steel U Shape 10m/Min Cold Roll Forming Machine 0
