Diameter: 420-560mm hydraulic expansion. Pictures for reference
Expansion: Hydraulic de-coiler
Capacity: 3000kg per mandrel
Max Coil Width: 1250mm
Home
>
products
>
Roll Forming Equipment
>
|
| Place of Origin | WUXI CHINA |
| Brand Name | SUSSMAN |
| Certification | CE |
| Model Number | SS-FD |

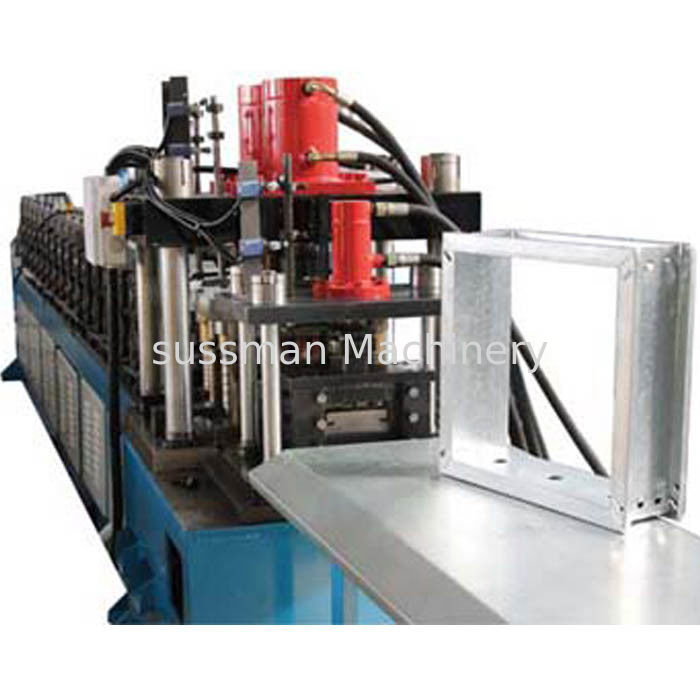

China Hot Sale Professional Square Vane Smoke Damper Roll Forming Machine With Chain Drive
Fire damper is temperature control of the memory melting alloy, which is closed by the action of gravity and the action of the
Thickness of sheet: 1.0-1.5mm
Motor Power: 7.5 kw forming system
Roller material: C45 steel
Base Frame: 300 H steel welded
Roller Stations About 13 stations forming
Roller Material 45# Steel with quenching
Shaft Material 45# Steel Diameter 60mm shaft
Rolling Speed: About 10m/min
Cutter blade material: Cr12mov HRC58-62 degree
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will
automatically start.
Material of blade: CR12with heat treatment
Length measuring: Automatic length measuring
Tolerance of length: 6m+/- 1.5mm
Length: 3 meters
Number: 2 units
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container.
