| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | SGS, ISO9001, CE |
| Model Number | SM-RM |
50mm -150mm Changeable Aluminium Profiles U Channel Roll Forming for Groove Square Ventilation
Technical parameter
|
Item |
Technical data |
|
Steel sheet thickness |
0.4-0.7mm (depend on requirement ) |
|
Hydraulic power |
7.5kw |
|
Transmission way |
Chain |
|
Capacity of Decoiler |
3 Tons passive |
|
Forming Speed |
0-30m/min |
|
Roller Groups |
about 20 main rollers |
|
Roller Material |
|
|
Roller Diameter |
75mm |
|
Principal Axis |
45# high grade steel with quenching treatment |
|
Main Motor Power |
11Kw |
|
Dimension |
9500*800*1200mm |
|
Weight |
8 Tons |
Main Components
|
S.N |
Equipment name |
Quantity |
|
1 |
3 ton passive un-coiler |
1 set |
|
2 |
Main roll forming machine |
1 set |
|
3 |
Servo following cutting device |
1 set |
|
4 |
Hydraulic station |
1 set |
|
5 |
Control system ( including control box) |
1 set |
|
6 |
Out tables |
2 units |
|
7 |
Spare parts |
1 package |
|
8 |
Safety cover |
1 set |
Ceiling Channel Machine Working Flow
De-coiler—→feedingwithguide—→roll forming machine—→hydraulic cutting—→ out tables
Function:
With aluminum sheet as raw material, uncoiling—roll forming—cut to length—auto unloading.
Lift sheets to uncoiler with forklift or crane, then manual guide material to roll forming machine for continuous roll forming, rotary encoder for length setting and auto shearing, then next sheet will push product out, whole production auto continuously production.

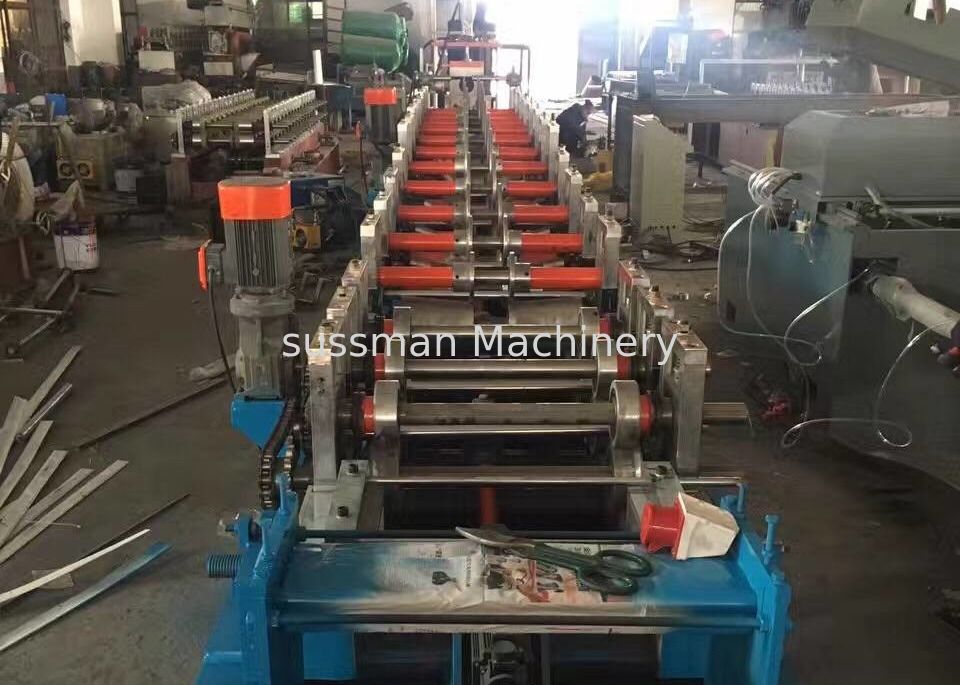

Machine Photo
