20a Current 4000mm Length 4 Sides Shelves Beam Welding Machine

Place of Origin	Jiangsu,China
Brand Name	Sussman
Certification	CE ISO 9001
Model Number	SM-RB

Product Details

Material Thickness:

1.0-4.0mm

Length Of The Beam:

1000-4000mm

Turn Over System:

By Cylinder, Gear

PLC:

Delta

Clamping:

By Pneumatic

Number Of Welding:

4 Sides

Weight:

1.2 T

Workpiece Type:

Clamped Beam / P-beam /Square Tube

Highlight:

20a current beam welding machine

4000mm length beam welding machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Standard Packing with steel wire fixed and film coated

Delivery Time

60days

Payment Terms

L/C, T/T

Supply Ability

10 set per month

Product Description

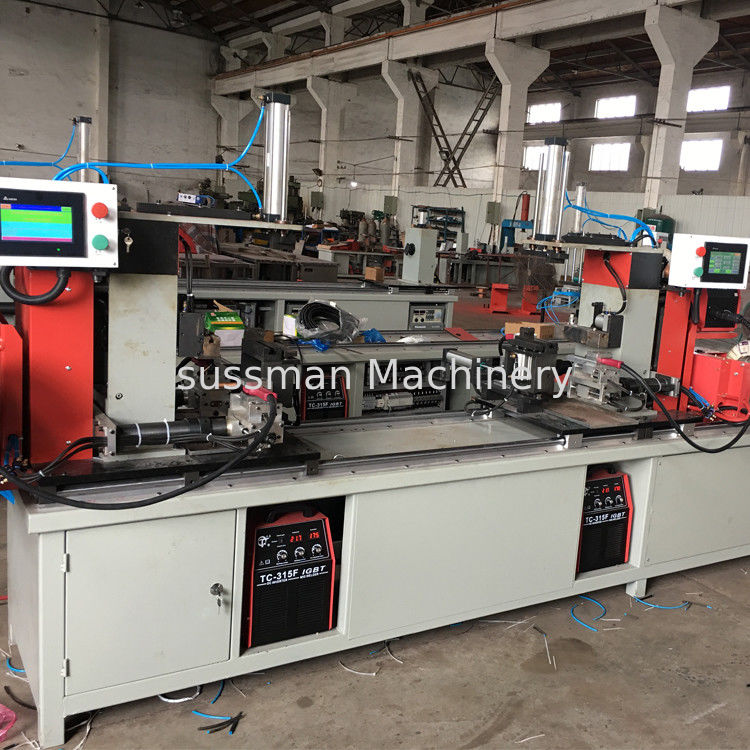

High Efficiency 20a Current 4000mm Length 4 Sides Shelves Beam Welding Machine

Beam Welding Machine Main Specifications

1	Welding edge	4 sides of beam
2	Length of the beam	1200-4000mm
3	Material thickness	0.8-4.0 mm
4	Diameter of the welding wire	0.8-1.0 mm
5	Model of the welding unit	TC-315F IGBT
6	Number of welding unit	4 sets welding guns
7	Number of air cylinder	18 sets
8	Main motor	2kwX2 stepping motor
9	Voltage	380V, 50HZ, 3 phase
10	Clamping	By pneumatic
11	Turn over system	By cylinder, gear and rack
12	Horizontal push to adjust the length	By liner guide way and fix by manual
12	Size of the machine	About 5.2mX1.2mX2.0m
14	Machine weight	About 1.2 tons
15	Gas	CO2 or 80%Ar+20%CO2

Rack Beam Profile reference

20a Current 4000mm Length 4 Sides Shelves Beam Welding Machine 0

20a Current 4000mm Length 4 Sides Shelves Beam Welding Machine 1

Beam welding machine application

This model is suitable for welding the beams which requirements to welding two lines of each end .

The four welders operate simultaneously to complete the work at once,it is high efficiency.We adopte the high-quality components, the machine has a very long life.

20a Current 4000mm Length 4 Sides Shelves Beam Welding Machine 2

20a Current 4000mm Length 4 Sides Shelves Beam Welding Machine 3
