| Place of Origin | Jiangsu,China |
| Brand Name | Sussman |
| Certification | CE ISO 9001 |
| Model Number | SM-RB |

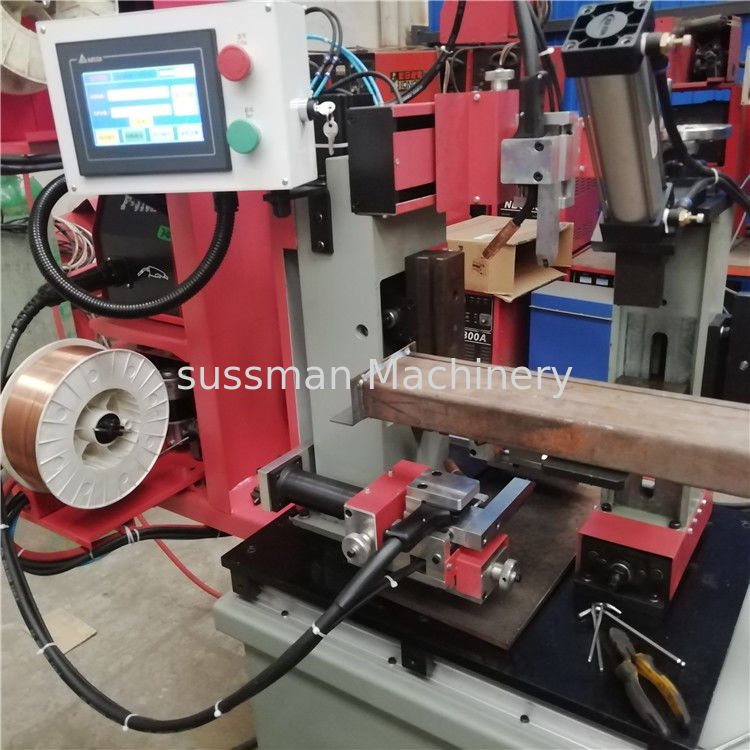

Panasonic Brand Four Sides P Shaped Box Beam Automatic Shelf Welding Machine
Beam Welding Machine Main Specifications
| 1 | Welding edge | 2 sides of each end |
| 2 | Length of the beam | 1200-3800mm |
| 3 | Material thickness | 0.8-4.0 mm |
| 4 | Diameter of the welding wire | 0.8-1.0 mm |
| 5 | Model of the welding unit | TC-315F IGBT or Panasonic NBC 350 |
| 6 | Number of welding unit | 4 sets welding guns |
| 7 | Number of air cylinder | 18 sets |
| 8 | Main motor | 2kwX2 stepping motor |
| 9 | Voltage | 380V, 50HZ, 3 phase |
| 10 | Clamping | By pneumatic |
| 11 | Turn over system | By cylinder, gear and rack |
| 12 | Horizontal push to adjust the length | By liner guide way and fix by manual |
| 12 | Size of the machine | About 5.2mX1.0mX1.9m |
| 14 | Machine weight | About 1200kgs |
| 15 | Gas | CO2 or 80%Ar+20%CO2 |
| 16 | Length Tolerance | 0mm to -4mm(Maximum single side -2mm) |
| 17 | Welding speed | About 100-150pcs/hour |
Rack Beam Profile reference
Beam welding machine application
This model is suitable for welding the beams which requirements to welding four lines of each end . The four welders operate simultaneously to complete the work at once,it is high efficiency.We adopte the high-quality components, the machine has a very long life.
