Rack Roll Forming Machine
>
|
|
| Place of Origin | Jiangsu,China |
| Brand Name | Sussman |
| Certification | CE ISO 9001 |
| Model Number | SM-RM |
Yield Strength 250 - 550mpa Material Thickness 1.5-2.5mm Pallet Racking Upright Roll Forming Machine
1. Upright Rack Roll Forming Machine Technical Parameter
|
No. |
Item |
Specification |
Optional |
|
1 |
Suitable material |
Type:Galvanized Coil, PPGI, Carbon steel Coil |
|
|
|
|
Thickness(mm):1.5-2.0,1.5-3.0 |
|
|
|
|
Yield strength: 250 - 550MPa |
|
|
|
|
Tensil stress( Mpa):G350Mpa-G550Mpa |
|
|
2 |
Nominal forming speed(m/min) |
10-20 |
Or according to your requirement |
|
3 |
Forming station |
18 |
|
|
4 |
Decoiler |
Manual decoiler |
Hydraulic decoiler or double head decoiler |
|
5 |
Main machine motor |
Wuxi Brand |
Siemens |
|
6 |
PLC brand |
Panasonic |
Siemens |
|
7 |
Inverter brand |
Yaskawa |
|
|
8 |
Driving system |
Chain drive |
Gearbox drive |
|
9 |
Rollers’ materail |
GCr15 |
D2 steel |
|
10 |
Station structure |
Casting iron structure |
Forged Iron station Or Wall panel station |
|
11 |
Punching system |
Punching press |
Hydraulic punching station |
|
12 |
Cutting system |
Post-cutting |
Pre-cutting |
|
13 |
Power supply requirement |
380V 50Hz |
Or according to your requirement |
|
14 |
Machine color |
Blue |
Or according to your requirem |
We have experience of exporting our pallet racking roll formers to Mexico, Peru, Costa Rica, India, etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your every need.
In warehouse pallet racking system, we are able to manufacture more machines like upright section roll forming machine and shelf panel roll forming machine etc.
2. Upright Rack Machine’s Components
|
Item |
Components Name |
Quantity |
|
1 |
3T hydraulic Decoiler |
1 set |
|
2 |
Leveling machine |
1 set |
|
3 |
80T punching press |
1 set |
|
4 |
Punching mould |
3 sets |
|
5 |
Roll Forming Machine |
1set |
|
6 |
Flying shear |
1 set |
|
7 |
Hydraulic Station |
1set |
|
8 |
PLC control cabinet |
1set |
|
9 |
Safety cover |
1 set |
|
10 |
Outables |
2 pcs |
|
11 |
Cutting blade |
3 sets |
3. Upright Rack Profile drawing
1.Finished products:76/100/120x70 racks with holes punching
2.Raw material request: galvanized steel
3.Material thickness:1.2mm-2mm
4.Application
Pallet racking roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machineable thickness is from 1.5-3.0mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.
5. Packaging & Delivery
Standard package with film, plastic and steel wire. (or customized)
1.Need about two 40ft containers for loading one set machine completely
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film
3. Spare parts and some small parts packed in plastic tooling box
4. All Components Fixed by steel wire with Container.
Delivery Detail:Shipped in 75 working days after payment

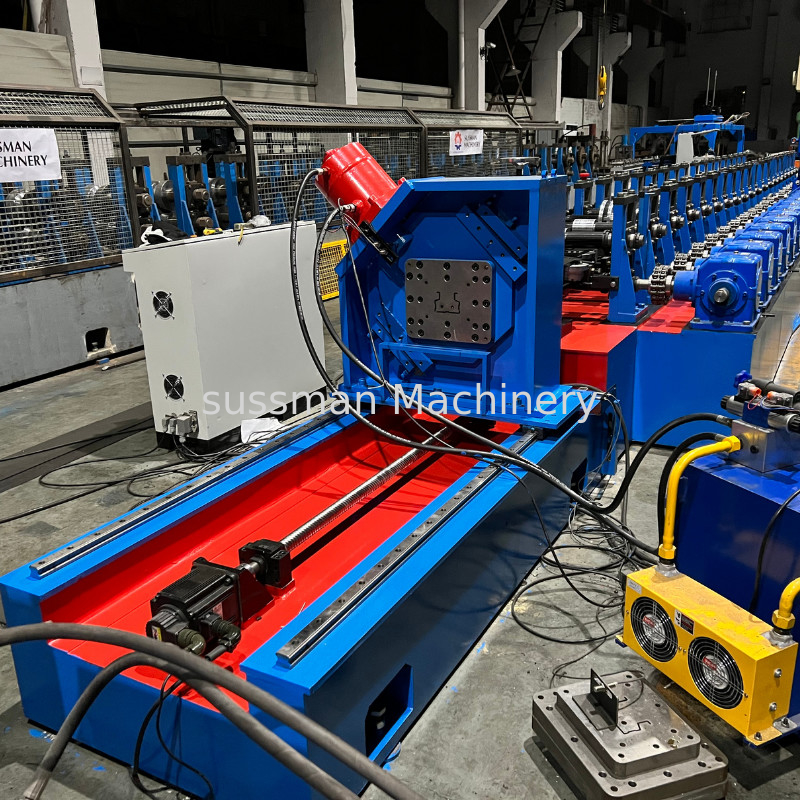

6. Upright Rack Machine Photo
