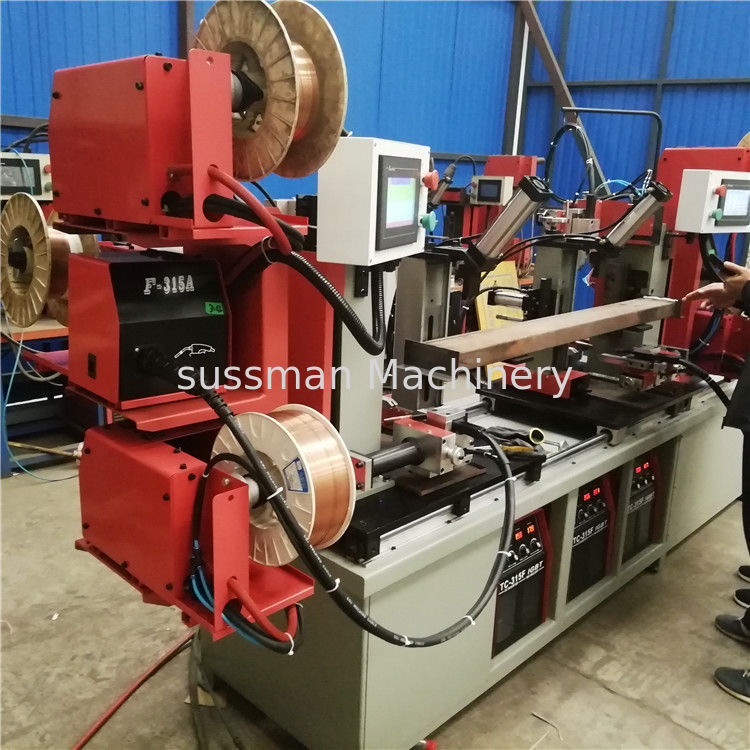

4000mm 4 Sides P Shaped Step Beam Welder Machine Delta PLC Control
  • 4000mm 4 Sides P Shaped Step Beam Welder Machine Delta PLC Control
  • 4000mm 4 Sides P Shaped Step Beam Welder Machine Delta PLC Control
  • 4000mm 4 Sides P Shaped Step Beam Welder Machine Delta PLC Control
  • 4000mm 4 Sides P Shaped Step Beam Welder Machine Delta PLC Control

4000mm 4 Sides P Shaped Step Beam Welder Machine Delta PLC Control

Place of Origin Jiangsu,China
Brand Name Sussman
Certification CE ISO 9001
Model Number SM-RB
Product Details
Material Thickness:
1.0-4.0 Mm Carbon Steel
Length Of The Beam:
1000-4000mm
Turn Over System:
By Cylinder, Gear
PLC:
Delta
Clamping:
By Pneumatic
Number Of Welding:
4 Sides And 6 Sides
Highlight:

4000mm Beam Welder Machine

,

4000mm laser beam welding equipment

,

Delta laser beam welding equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard Packing with steel wire fixed and film coated
Delivery Time
60days
Payment Terms
L/C, T/T
Supply Ability
10 set per month
Product Description

6 Sides 4 Sides Automatic P Shaped Step Beam Welder Machine





Beam Welding Machine Main Specifications



1 Welding edge 6 sides of beam
2 Length of the beam 1200-4000mm
3 Material thickness 0.8-4.0 mm
4 Diameter of the welding wire 0.8-1.0 mm
5 Model of the welding unit TC-315F IGBT or Panasonic brand
6 Number of welding unit 6 sets or 4 sets welding guns
7 Number of air cylinder 18 sets
8 Main motor 2kwX2 stepping motor
9 Voltage 380V, 50HZ, 3 phase
10 Clamping By pneumatic
11 Turn over system By cylinder, gear and rack
12 Horizontal push to adjust the length By liner guide way and fix by manual
12 Size of the machine About 5.2mX1.0mX1.9m
14 Machine weight About 1200kgs
15 Gas CO2 or 80%Ar+20%CO2
16 Length Tolerance 0mm to -4mm(Maximum single side -2mm)
17 Welding speed About 100-180pcs/hour



Rack Beam Profile reference


 4000mm 4 Sides P Shaped Step Beam Welder Machine Delta PLC Control 0



Beam welding machine application





This model is suitable for welding the beams which requirements to welding four lines of each end . The four welders operate simultaneously to complete the work at once,it is high efficiency.We adopte the high-quality components, the machine has a very long life.



4000mm 4 Sides P Shaped Step Beam Welder Machine Delta PLC Control 1

4000mm 4 Sides P Shaped Step Beam Welder Machine Delta PLC Control 2
