| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | SGS, ISO9001, CE |
| Model Number | SM-PM |
2.0-4.0 mm Gearbox Drive GCr15 Steel Container House Top Beam Bottom Beam Roll Forming Machine
Technical parameter
| No. | Item | Specification |
| 1 | Decoiler | 5T Manual decoiler |
| 2 | Mill bed material | 450 H steel welding |
| 3 | Feeding platform type | Side roller type |
| 4 | Transmission method | Gearbox drive |
| 5 | Side wall thickness | 20mm |
| 6 | Shaft diameter | 95mm diameter with solid shaft |
| 7 | Main motor power | 2*18.5kw |
| 8 | Machine speed | 8-10m/min |
| 9 | Forming stations | 22 stations |
| 10 | Shaft material | GCR 15 with heat treatment |
| 11 | Cutting blade material | CR12 |
| 12 | Pump station power | 5.5 kw gear pump |
| 13 | Raw material Thickness | 4mm |
| 14 | Length sizing accuracy | +/- 2mm |
| 15 | lacing hole mold | One set |
Main Components
| Machine name | Quantity |
| 5T passive uncoiler | 1 set |
| Main roll forming system | 1 set |
| Hydraulic stop cutting system | 1 set |
| 4 meters out tables | 1 ste |
| PLC control box system | 1 set |
| Tool box | 1 package |
| Safety cover |

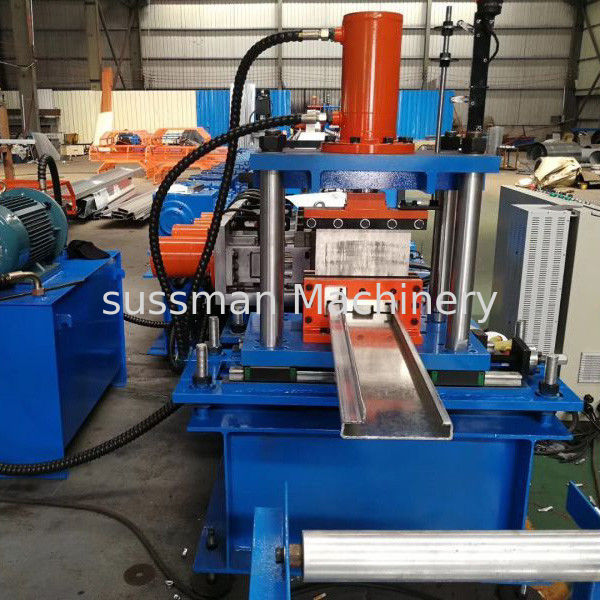

Container House Machine Photo
