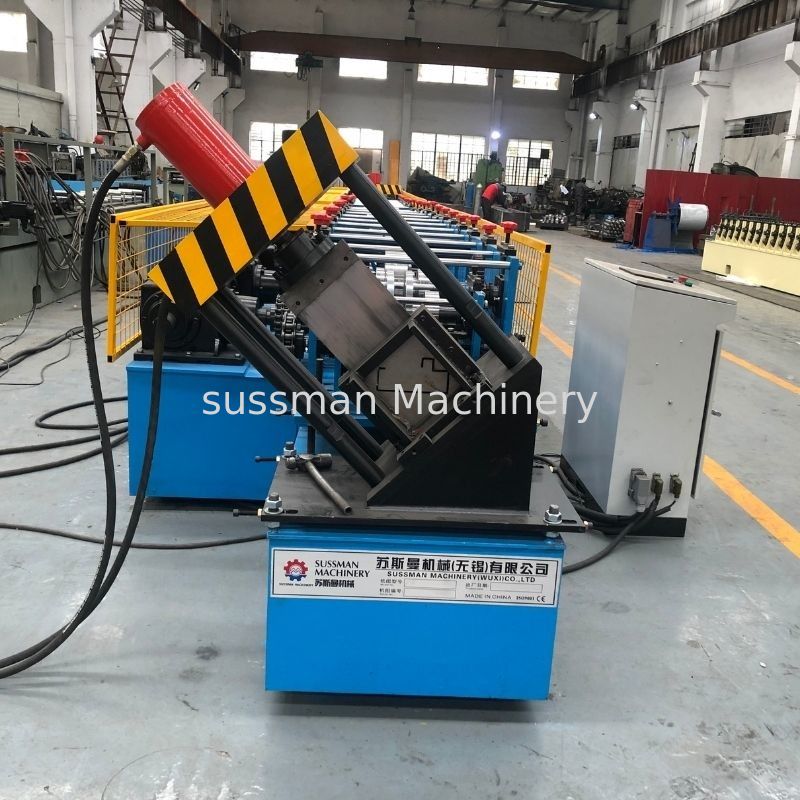

12m/S 3mm Carbon Steel Roll Forming Equipment For Container House

12m/S 3mm Carbon Steel Roll Forming Equipment For Container House
12m/S 3mm Carbon Steel Roll Forming Equipment For Container House

Large Image :  12m/S 3mm Carbon Steel Roll Forming Equipment For Container House

Product Details:

Place of Origin: Wuxi Jiangsu China
Brand Name: Sussman
Certification: SGS, ISO9001, CE
Model Number: SM-PM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard packing
Delivery Time: 60 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detailed Product Description
Thickness: 2.0-3.0mm Forming Stations: About 26 Stations
Hydraulic Power: 3 Kw Working Speed: 8-12 M/min
Shaft Diameter: 80mm Transmision: Gearbox
High Light:

3mm Roll Forming Equipment

,

12m/s Roll Forming Equipment

,

3mm metal roll forming machine

2.0-3.0 mm Material Carbon Steel Beam Purlin Roll Forming Machine for Container House





No.

Type

Specification







1





Raw Material

Type

Galvanized steel

Feeding width

According to finalprofile

Thickness

2.0-3.0mm

















2

















Main Body

Forming roller station

22 Stations

Diameter of shaft

80mm

Shaft material

High grade Gcr15 steel

Roller material

high grade 45# steel , hard treatment and polishing ( plated chrome on surface )

Main body frame

Whole set of square pipe

Frame thickenss

14 mm

Working speed

8-12 m/min

Size (L*W*H)

About 12000*850*1310mm

Weight

About 5 tons







3







Power

Motor power

11 kw

Hydraulic power

3 kw

Voltage

380V 50Hz 3phases or Customerization

Drving Way

By chain







4







PLC Control System

Language

English and Chinese

Brand Of PLC

Delta brand ( Touch Screen )

Operation

Manual and Automatic ( Two Type )





5





Cutting Device

Cutting Type

mould





Machine inclued parts

Machine name Quantity
5T manual uncoiler 1 set
Main roll forming  1 set
Hydraulic punching device 1 set
Hydraulic stop cutting system 1 set
4 meters out tables 1 ste
PLC control box system 1 set
Tool box 1 package
Safety cover





Container House Machine



Cold roll forming is a method of shaping hard metals, such as steels and stainless steels. Very precise, complex cross-sections can be created, and long lengths of these sections can be consistently reproduced.



1. The unique rollforming machinery designs have varies widths and heights product that could be simply production by computer control, to input the parameters instead of any tools change over. The rollforming line is available to set up groups of pattern punching units to deal with pattern holes in line automatically.



2. The type of rollforming machinery is designed to roll form both edges of sheet panel, main machine with one side fixed and one side adjustable to suit for various widths of sheet panel. Extensively use in the productions of office furniture, steel shelving system, cold storage panels and many industries applications.



12m/S 3mm Carbon Steel Roll Forming Equipment For Container House 0

12m/S 3mm Carbon Steel Roll Forming Equipment For Container House 1
