CZ Purlin Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.CE.ISO |
| Model Number | SM-CP |

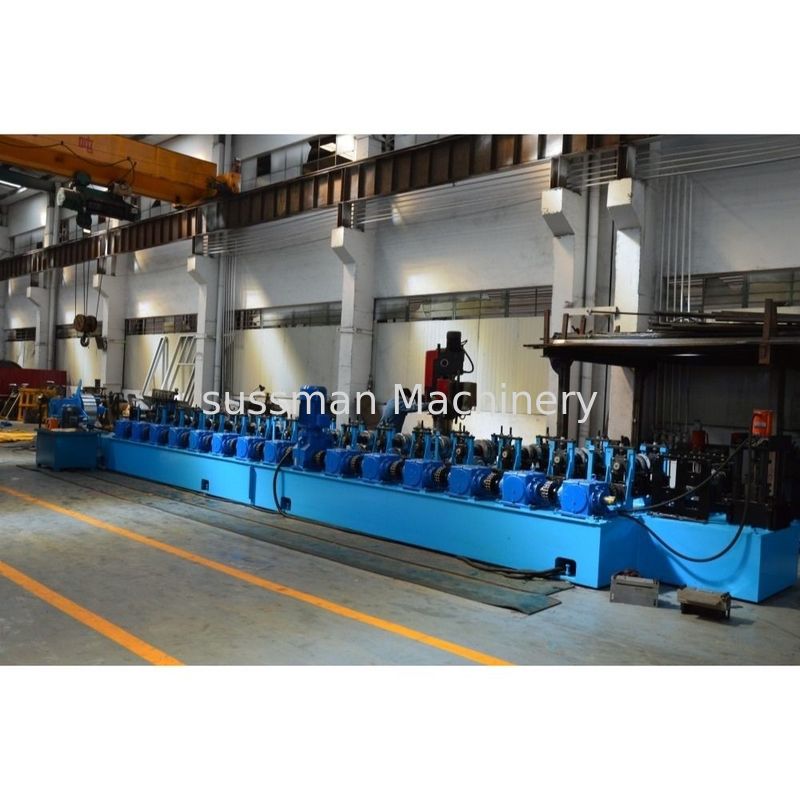

C Channel Purlin Steel Frame Roll Forming Machine with 3 Cuttings
C Purlin Technical Parameter
|
|
Items |
Specifications |
|
Material of coil |
Material Thickness |
1.0-2.5 mm Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils |
|
De-coiler |
Weight |
3 tons passive |
|
Forming system |
Rolling Speed |
10-12m/min |
|
Roller Stations |
About 18 stations forming |
|
|
Roller Material |
Gcr15 Steel with quenching |
|
|
Shaft Material |
45# Steel Diameter 75mm shaft
|
|
|
Maim Motor Power |
11 kw |
|
|
Hydraulic cutting Power |
5.5 kw |
|
|
Cutting system |
Material Of Cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blade |
1 set of cutting blade |
|
|
Electrical control system |
Electric Source |
380V, 50HZ, 3phase
|
|
Control System |
PLC with touch screen Japanese Panasonic and Yaskawa Brand |
|
|
|
Way Of Drive |
1 inch single chain |
|
|
Size of machine |
Length 7300mm* Width 800mm* Height 1000mm |
Main Components
| S.N | Equipment name | Quantity |
| 1 | 3T manual uncoiler | 1 set |
| 2 | Levelling device | 1 unit |
| 3 | Punching station (including punching mould) | 1 unit |
| 4 | Main roll forming machine | 1 set |
| 5 | Main drive | 1 unit |
| 6 | Cutting unit | 1 set |
| 7 | Hydraulic station | 1 set |
| 8 |
Control system ( including control cabinet) |
1 set |
| 9 | Out put rack | 1 set |
| 10 | Cutting mould | 3 sets |
Application
Loading pictures
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion).
Delivery time: 75 days after deposit
Our Service
Guarantee period: 12 months free service.
Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
