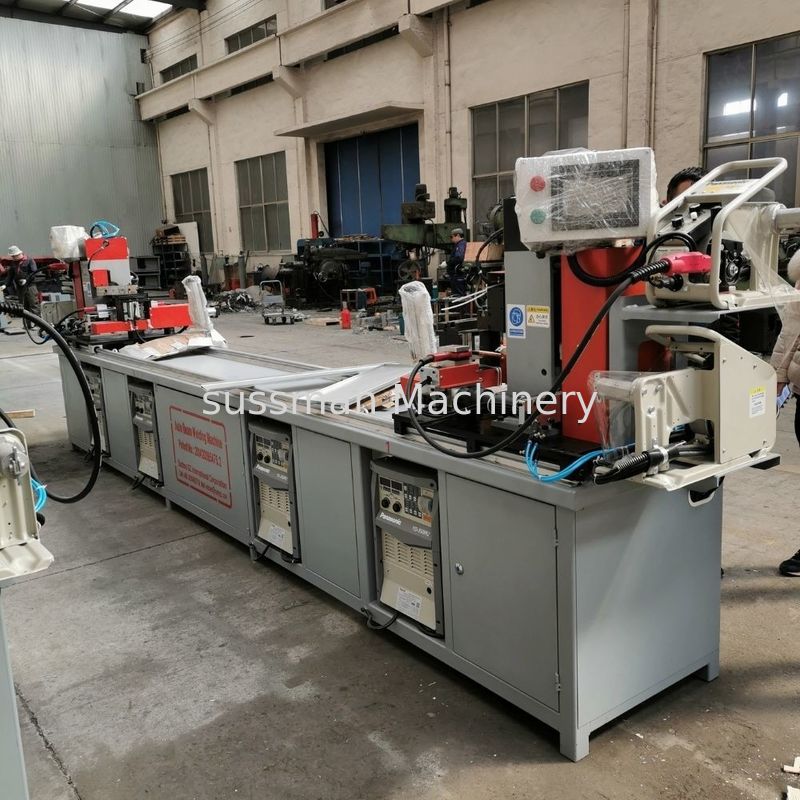

Pneumatic Clamping Beam Welding Roll Forming Equipment T3mm L1200-4000mm

Place of Origin	Wuxi, China
Brand Name	Sussman Machinery
Certification	CE
Model Number	SS-WT

Product Details

Machine Weight:

About 1200kgs

Speed:

3 Pieces In 2 Min

Length Of The Beam:

1200-4000mm

Connector Thickness:

3mm

Diameter Of The Welding Wire:

0.8-1.0mm

Model Of The Welding Unit:

TC-315F IGBT (Chinese Brand)

Highlight:

T3mm Roll Forming Equipment

T3mm automatic beam welding machine

L1200mm automatic beam welding machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Plastic film and wooden box

Delivery Time

75DAYS

Payment Terms

Western Union, D/A, L/C, D/P, T/T

Supply Ability

10 SETS PER MONTH

Product Description

3mm Thickness 1200-4000mm Length Pneumatic Clamping Metal Beam Welding Machine
Specifications:

1	Welding edge	4 sides of each end of the beam
2	Speed	3 pieces in 2 min
2	Length of the beam	1200-4000mm
3	Connector thickness	3mm
4	Diameter of the welding wire	0.8-1.0mm
5	Model of the welding unit	TC-315F IGBT (Chinese brand)
6	Number of welding unit	4 sets
7	Main motor	2kwX2 stepping motor
8	Voltage	220v, 60HZ, 3 phase
9	Clamping	By pneumatic
10	Turn over system	By cylinder, gear and rack
11	Horizontal push to adjust the length	By liner guide way and fix by manual
12	Size of the machine	About 5.2mX1mX1.9m
13	Machine weight	About 1200kgs
14	Packing	Wooden box packing

Brand list:

1	PLC	Delta
2	Touch screen	delta
3	Air cylinder	AirTac
4	Relay and switch	Schneider
