Roll Forming Equipment
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman Machinery |
| Certification | CE |
| Model Number | SS-WT |
| Roller Stations | About 14 Stations |
| Roller Speed | 30-70m/min |
| Tube Length | 4-6m |
| Size | O. D.:Φ25～Φ96 Square and rectangle tube:20*20～ 50*100 |
| Tube Wall Thickness | round tube0.9～3.0mm square tube:0.9～2.5mm |
| Control System | PLC Control |
| Drive | Gearbox Drive |
| Cutting | Computer-controlled cutting saw |
| Cutting Motor | 22KW |
| High frequency welder | GGP250-.0.35-H 250KW solid state high frequency welder |
Brand list:
| NO. | Machine List | Quantity |
| 1, | Double side uncoiler | 1 Set |
| 2, | Shear & butt-welder | 1 Set |
| 3, | Vertical loop accumulator | 1 Set |
| 4, | Forming and sizing section | 1 Set |
| 5, | Computer-controlled cutting saw | 1 Set |
| 6, | Run out table with power roller | 1 Set |
| 7, | Solid state high frequency welder | 1 Set |

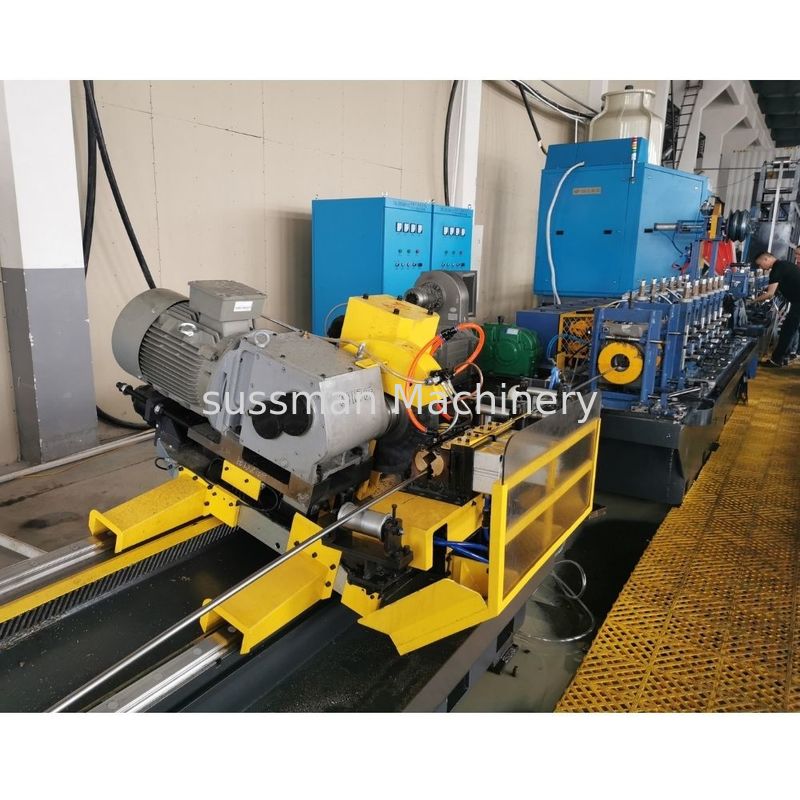

Machine Pictures:
