Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material
  • Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material
  • Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material
  • Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material
  • Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material
  • Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material
  • Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material
Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material

Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material

Place of Origin China
Brand Name Sussman
Certification ISO9001
Model Number CZ
Product Details
Main Motor Power:
15KW
Hydraulic Station Power:
5.5KW
Punching Method:
Hydraulic Punching
Cutting:
Post Cutting
Matrial Of The Rollers:
Gcr15
Matching Material:
GI,MS
Thickness:
1.5-3mm
High Light:

Interchangeable CZ Purlin Roll Forming Machine

,

GI material Purlin Roll Forming Machine

,

Post cutting cz purlin machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 40,000 Set
Packaging Details
Naked packing
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
2 sets per month
Product Description

Automatically CZ Interchangeable Purlin Roll Forming Machine with Hydraulic Punching





Description



Purlin is widely using in industry building,horizontal beams or bars used for structural support in buildings. The machine can forms different size through change some rollers position. And also can punch and cut automatically as setting.

CZ Interchangeable roll forming machine can produce C purlins and Z purlins.



Applications of C&Z purlin include:

1. Industrial construction
2. Hall and warehouse construction
3. Extension construction and renovation
4. Agricultural projects



Main Advantages



1. High speed:4- 10m/min( Including punching and cutting time)

2. High Quality with low price

3. Online punching, we can even punch the holes on the two flanges.

4. From C to Z or C to Z without changing the rollers, only needs to press the button on the touch screen.

5. Universal blade for all the C&Z sizes. There's no NEED for changing the blade, only need to adjust the  screws. It will save too much time during the changeover size.

6. Stable strutures: using H-beam for the under frame, and the thickness of the side plate for holding the shafts is over 50mm.

7. The rollers are using bearing steel, do quenching treatment after CNC. It can be used for over 5 years without losing shapes.

8. Long life working time

9. Good after service: We will provide after sale services all year. We two techicians special for after sale serivces, they stay outside all year to do services.











Technicial Speciafication



C/Z Quick Interchangeable Machine
No
Item
Specification
Optional
1
Suitable material
Type:Galvanized Coil, PPGI, Carbon steel Coil

Thickness(mm):1.5-3.0
Yield strength: 250 - 550MPa
Tensil stress( Mpa):G350Mpa-G550Mpa
2
Nominal forming speed(m/min)
10-15
Or according to your requirement
3
Forming station
18

4
Decoiler
Manual decoiler
Hydraulic decoiler or double head decoiler
5
Main machine motor
China famous Brand
Siemens
6
PLC brand
Panasonic
Siemens
7
Inverter brand
Yaskawa

8
Driving system
Chain drive
Gearbox drive
9
Rollers’ materail
GCr15
Cr12
10
Station structure
Wall panel station
Forged Iron station
Or torri stand structure
11
Punching system
Yes
Hydraulic punching station or Punching press
12
Cutting system
Post-cutting
Post- universal cutting
13
Power supply requirement
380V 50Hz
Or according to your requirement
14
Machine color
Industrial blue
Or according to your requirement



Main Components of the Machine

1. Hydraulic Decoiler with Breaking device is equipped for coil processing.

2. Leveler

3. Hydraulic punching system

4. Pre Shearing System

5. Rollformer with tooling

6. Run Out Table or automatic stacking device

7. Panasonic (Japan) PLC and MCGS touch screen are used for data processing and setting.

8. Roll forming speed is 8 - 12m / min.

Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material 0

Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material 1

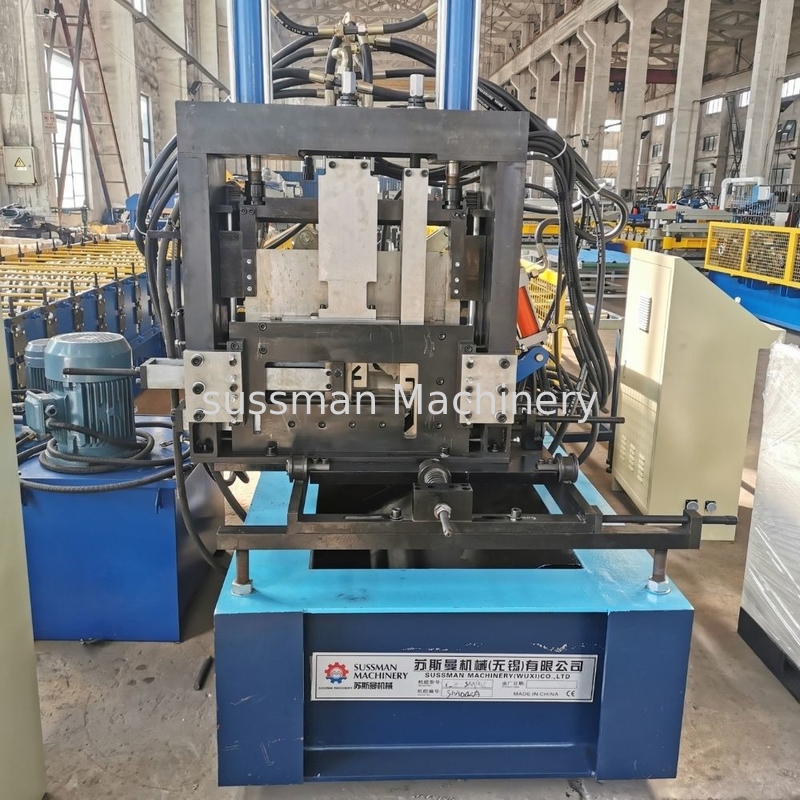

Pictures of the product:

Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material 2

Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material 3

Interchangeable Post Cutting CZ Purlin Roll Forming Machine For GI Material 4





Advantage:



1.Produce different purlin size without changing rollers or spacers.

2.No need changing cutter for different size.

3.Easy operation, low maintenance cost

4.Infinite sizing(any size within machine range),help to save material

5.Optional Punch hole at any position of purlin web side and flange side
