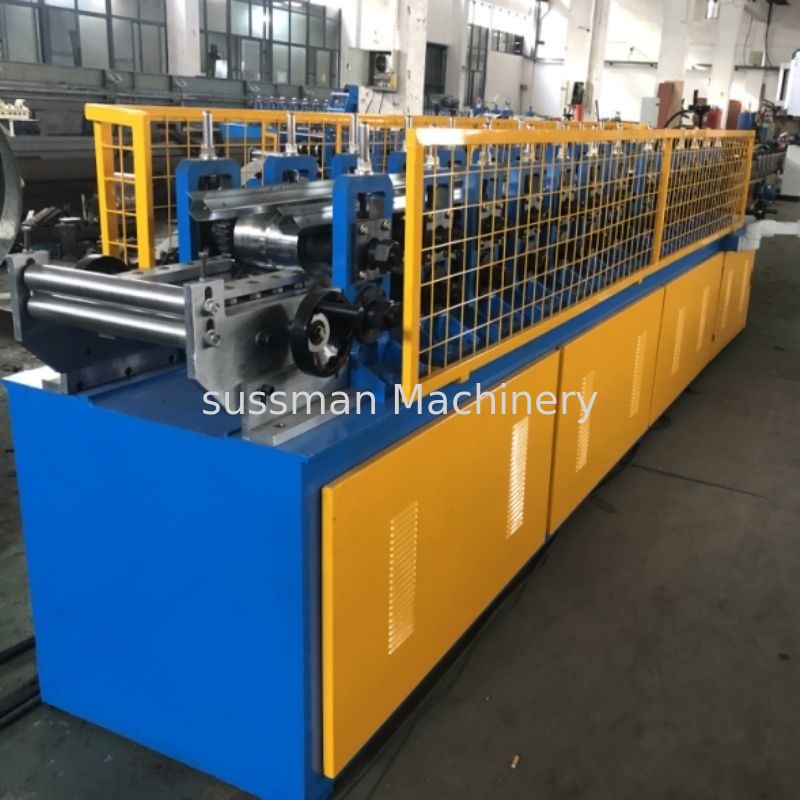

VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching

VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching

Place of Origin WUXI CHINA
Brand Name SUSSMAN
Certification CE
Model Number SS-FD
Product Details
Main Motor Power:
7.5KW
Material Thickness:
1.0-1.5 Mm Galvanized Coils
Rolling Stations:
About 14 Stations
Way Of Drive:
1.2 Inch Chain
Cutting Power:
5.5 KW
Control System:
PLC Control
Highlight:

Air Duct frame roll forming machine

,

14 Stations frame roll forming machine

,

VCD steel framing roll former

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
standard packing
Delivery Time
65-75 days after deposit
Payment Terms
T/T, L/C
Supply Ability
10 sets per month
Product Description

Full Automatically VCD Fire Air Duct Damper Frame Roll Forming Machine with Punching





Fire Damper Technical Parameter


  Items Specifications
Material of coil Material Thickness 1.0-1.5 mm galvanized coils
  Un Coiler 3 tons hydraulic
Servo feeding Motor Delta 1.8kw
Punching device Punching 4 sets of punching die
Forming system Forming Speed About 2-3pieces/min
  Roller Stations About 16 stations
  Roller Material

Gcr15 coated with chrome


  Maim Motor Power 7.5kw
  Motor cutting Power 5.5kw

Cutting

system

 Material Of Cutting CR12mov with quench treatment
  Hardness HRC58-62
  Tolerance +-1.5mm
  Cutting blades 1 set
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s requirey
  Control System PLC Delta as list in the note
  Weight About 8 tons
  Way Of Drive 1.2 inch chain
Machine size mm 10000mm*700mm*1000mm






Fire Damper Main Components



     S.N

   Equipment name


    Quantity
      1.

    5T passive un-coiler


     1 set
      2.

    Main roll forming machine



     1 set
      3.

    Hydraulic cutting


     1 set
      4.

    Control system (including control box)


     1 set
      5.

    Punching


     2 sets
















Working Flow of  Fire Damper

Decoiler----Feeding---Roll forming---Cutting---Run out tables



 working flow.png



Samples



VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching 1



VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching 2



Machine List:



1, 3 Tons Hydraulic Decoiler

VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching 3



2, Hydraulic punching with servo feeder

VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching 4

3, Hydraulic Cutting



VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching 5

5, Control Box

VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching 6



6, Output table



VCD Fire Air Duct Damper Frame Roll Forming Machine With Punching 7





Advantage for Fire Damper

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
