| Place of Origin | WUXI CHINA |
| Brand Name | SUSSMAN |
| Certification | CE |
| Model Number | SS-FD |

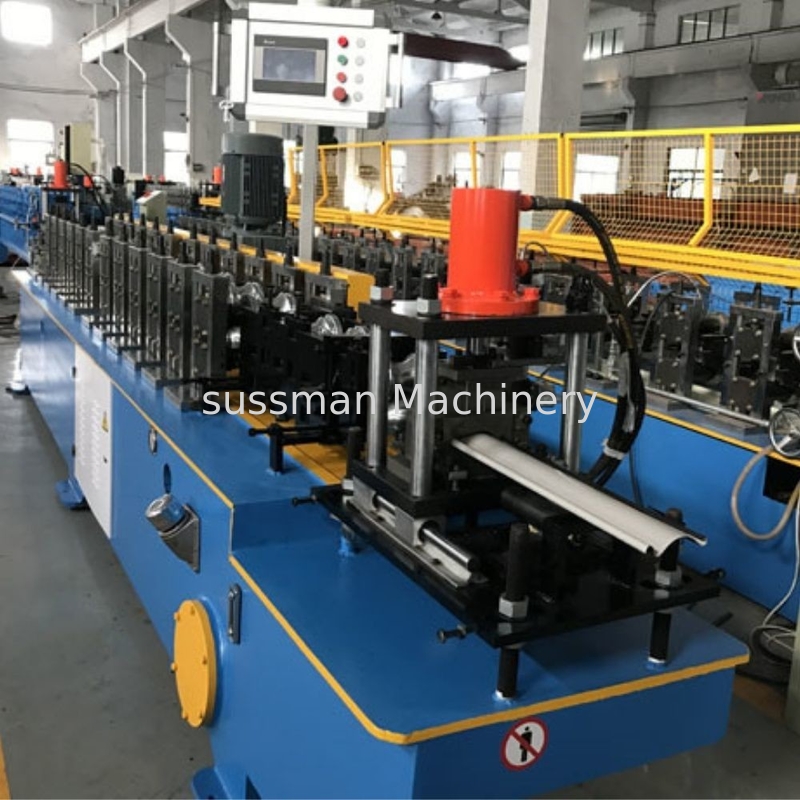

Opposed VCD Fire Damper Blade Roll Forming Machine Width Adjustable HVAC System
Technical Parameter
| Items | Specifications | |
| Material of coil | Material Thickness | 0.6-1.0mm |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | About 10m/min |
| Roller Stations | About 12 stations feeding | |
| Roller Material |
Gcr15 coated with chrome |
|
| Maim Motor Power | 5.5 kw | |
| Motor cutting Power | 4kw | |
|
Cutting |
Material Of Cutting | CR12mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
415 V, 50HZ,3 phase |
| Control System | PLC (Panasonic) as list in the note | |
| Weight | About 4 tons | |
| Way Of Drive | 1.2 inch chain |
Machine list
| Machine list | 3 ton passive de-coiler | 1 set |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Out table | 1 unit | |
| One 20 feet GP Container | ||
Technological process:
Uncoiling—feedingwithguide———Rollforming——Cutting ——Products collecting
Profile Drawing
Samples
Application:
Our After-Sales Service Commitments
Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipments sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipments, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipments, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts
The detailed measures are as follows:
1.Guidelines for installation and commissioning of equipments:
Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipments, and provide Buyer with answers to their questions and related issues;
2.Provide training for operation and maintenance personnel:
Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;
a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;
b) When Sussman is doing the installation and test running of the equipments for the Buyer, the Buyer can send their personnel to participate.
3.If failure occurs in any of the machines during the “three guarantees” period(one year), three guarantees including the electricity parts, the rolls, the shafts and punching& cutting moulds, then, upon the Buyer’s request, Sussman will eliminate the failure;
4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.
We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
