Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed

Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed
Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed
Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed

Large Image :  Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed

Product Details:
Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 10 sets/month

Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed

Description
Material: Galvanized Steel Coils Material Thickness: 0.2-1.0mm
Coil Palte Width: 1250mm Slitting Speed: 0-20m/min
Coil Weight: 5000KGS Power: 7.5KW
High Light:

galvanized steel coils Slitting Lines

,

20m/Min steel Slitting Lines

,

steel Slitting Lines With Speed

0.2 Mm-1.0 Mm X 1250 Mm Steel Coil Simple Hydraulic Cut To Length Line With Speed 0-20m/Min





1. Technical Parameter



No Name Unit Parameter
1 Materials   CRS, GI, SS, Aluminum
2 Thickness mm 0.2-1.0
3 Width mm 1250
4 Coil I.D. mm Φ508
5 Coil weight MT 5
6 Max speed m/min 0-20
7 Cutting precision Mm 1.0 mm/two meters 0.5mm/one meter
8 Leveling roll piece Upper 4 / Lower 5
9 Feeding roll piece Upper 2/ Lower 2
10 Diameter of leveling rollers mm Φ65mm
11 Distance of leveling rollers mm 70mm
12 Material of leveling roller   GCr15
13 Diagonal tolerance mm ≤±2mm/2000mm
14 Length tolerance mm ≤±1mm/2000mm
15 Power   380V/50HZ/3PH
16 Size of the whole line(about) m 15m(L)X5m(W)
17 The direction of whole line   Depends on Customers' requirement
18 The color   customized





2. Cut to length line machine description



The Cut-To-Length Line including uncoil to support the coil material, levelling it, and then cut it to the required length and stack it.



The end product produced by a Cut-To-Length Line is a flat sheet of material cut to a very precise length tolerance.



We can customize the Cut-To-Length line according to your requirement, there are several variables you should provide: the thickness of material, the type of material, length of the sheets to be produced, as well as annual volume to be processed all influence the line configuration and capabilities required for a successful installation.

Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed 0







3. Composed Device



1. Hydraulic decoiler

Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed 1

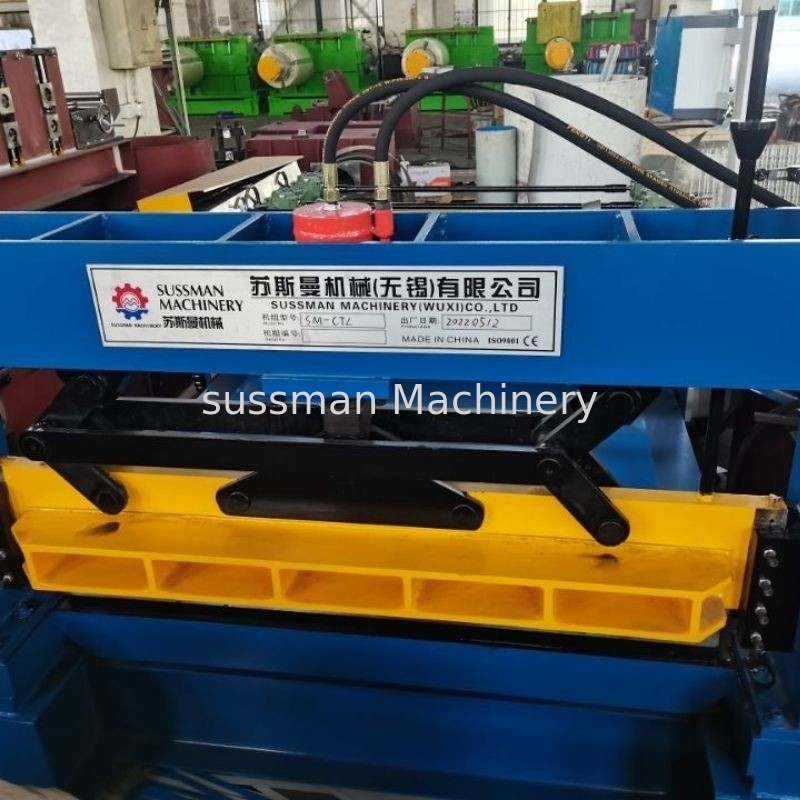

2. Hydraulic cutting

Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed 2





3. Out put table

Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed 3





4. Sussman Machinery

Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it's always design and produce various type profile of roll forming machine. The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects.



Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand. Company building area is over 5000 square meters, it has a highly efficient design, manufacturing, sales of high-quality team. The machine is coving in 30 provinces of China and worldwile.



The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better. The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming machine can be designed according to customer's profiles. Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.



Galvanized 1.0mm Steel Coil Slitting Lines 20m / Min Hydraulic With Speed 4
