| Place of Origin | China |
| Brand Name | SUSSMAN |
| Certification | CE, SGS, ISO9001 |
| Model Number | SS-FP |

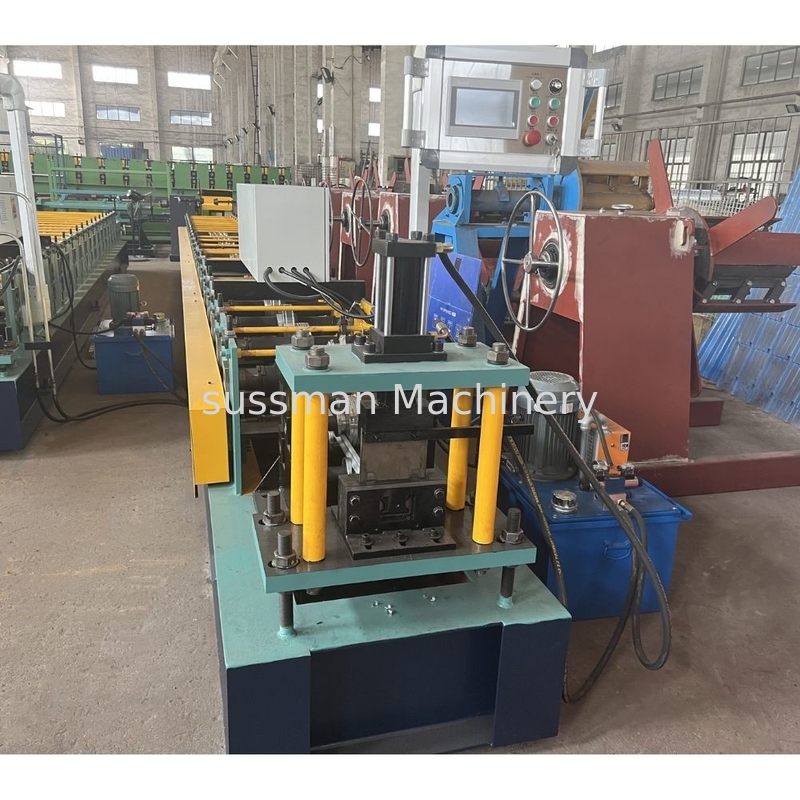

0.5mm-0.7mm Thickness Fence Post Roll Forming Machine
The fence system includes fence post, fence rail track and fence panel. It needs 3 sets of roll forming machines.
Technical Data
| Items | Specifications | |
| Material of coil | Material Thickness | 0.5-0.7mm galvanized, G235-350Mpa |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | About 10-20 m/min |
| Roller Stations | About 21 stations | |
| Roller Material |
45# Steel with quenching 60mm shaft
|
|
| Maim Motor Power | 7.5 kw | |
| Hydraulic cutting Power | 3 kw | |
|
Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source |
380V, 50HZ,3 phase Also can satisfy Customer’s require |
| Control System | PLC with touch screen | |
| Weight | About 3.5 tons | |
| Way Of Drive | 1 inch single chain |
Machine List:
| 3 ton manual de-coiler | 1 set |
| Feeding with guide | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic cutting device | 1 set |
| PLC Control box | 1 set |
| Hydraulic station | 1 set |
| 4m out table | 1 set |
| Safety cover | 1 set |
Profile Drawing:
Application:
After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
