0.05Mm Automatic Coil Embossing Machine Cold Steel Galvanized

0.05-0.25 Mm X1250 Mm Cold Steel Galvanized Steel Coil Automatic Embossing Machine

Characteristic

1)The line consists of uncoiler,embossing and recoiler.

2)Raw Material: stainless steel

3)Embossing pattern: to be provided by clients.

4)Uncoiler&Recoiler are optional.

5)Requirements by customer are welcome.

1.Uncoiling Machine

1.Outline data:About 2000×900×1350mm(Length× Width× Height)

2.coiled material mode:Φ200×1200mm air swelling shaft

3.support the weigh: ≤1000kg

4.Side with brake systems: Magnetic powder brake

2.Embossing Machine

1.Outline data: 2400×900×1300mm(Length× Width× Height)

2.Roller size: diameter 310×1200mm

3.Material of roller : 45 steel

4.Roller surface:Electroplating chrome

5.Embossing pattern: Customized by sample

6.Thickness of plate: 0.05-0.254×1066mm,stainless steel plate

7.Way of embossing: the male and female rollers press each other up and down

8.Embossing regulation:by Turbo-worm reducer

9.Speed: 0-18m/min

10. Motor power:Siemens Beide 240V 4Kw 60Hz 3PHASE motor

3.Recoiling Machine

1.Outline data: 2600×900×1350mm(Length× Width× Height)

2.coiled material mode:Φ200×1200mm air swelling shaft

3.support the weigh: ≤1000kg

4.Motor power: 240V 60Hz 3Phase 100 Nm torque motor,Speed: 0-18m/min

5.Gas rising axis side can be fine-tuned before and after

4. Flower Pattern

5.Applications

Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations, wall cladding, ceilings, bathrooms, kitchens and balconies.

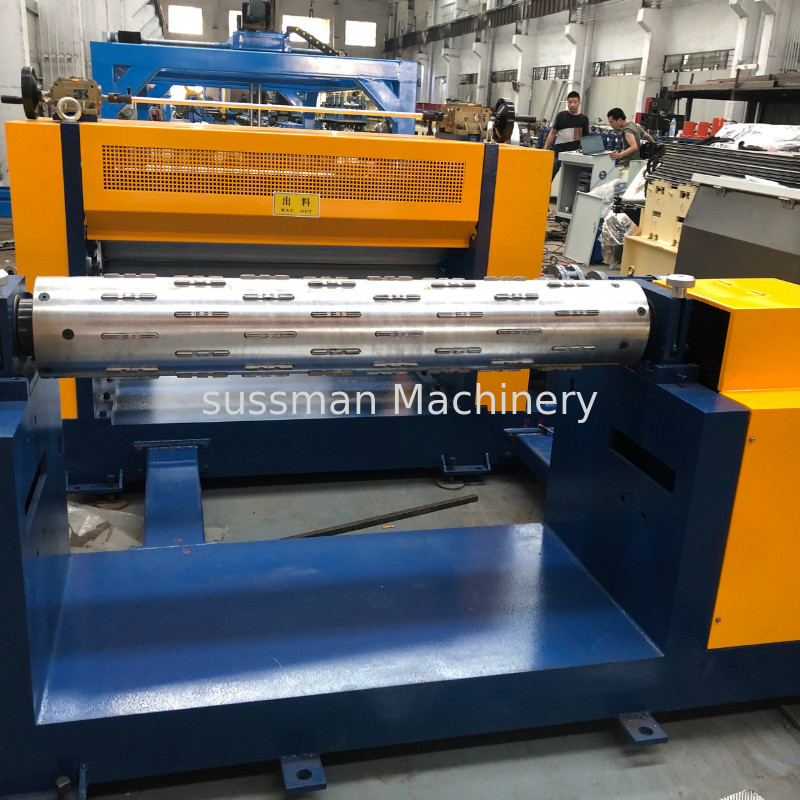

6. Embossing Machine Photo
