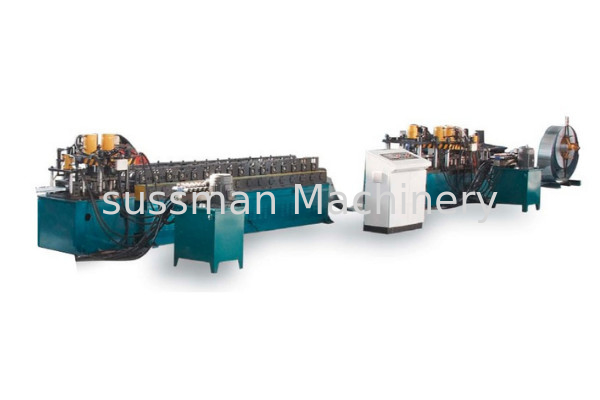

0.8-1.5mm Automatic Fire Damper Frame Roll Forming Machine With Hydraulic Punching
Fire damper is temperature control of the memory melting alloy, which is closed by the action of gravity and the action of the mechanism. In the new products, the memory alloy is used to deform the valve to close the valve.
Its function: when the temperature of the flue gas reaches 280 , the person has evacuated, the smoke exhaust has no practical significance, and the flue gas has been fired at this time, the valve is automatically closed to avoid the spread of fire.
Fire Damper Technical Parameter
Items | Specifications | |
Material of coil | Material Thickness | 0.8-1.5 mm galvanized coils |
Un Coiler | 3 tons hydraulic | |
Servo feeding | Motor | Delta 1.8kw |
Punching device | Punching | 4 sets of punching die |
Forming system | Forming Speed | About 2-3pieces/min |
Roller Stations | About 14 stations | |
Roller Material |
Gcr15 coated with chrome
|
|
Maim Motor Power | 7.5kw | |
Motor cutting Power | 5.5kw | |
Cutting system |
Material Of Cutting | CR12mov with quench treatment |
Hardness | HRC58-62 | |
Tolerance | +-1.5mm | |
Cutting blades | 1 set | |
Electrical control system | Electric Source |
380V, 50HZ,3 phase Also can satisfy Customer’s requirey |
Control System | PLC Delta as list in the note | |
Weight | About 8 tons | |
Way Of Drive | 1.2 inch chain | |
Machine size | mm | 10000mm*700mm*1000mm |
Fire Damper Main Components
S.N |
Equipment name |
Quantity |
1. |
5T passive un-coiler |
1 set |
2. |
Main roll forming machine
|
1 set |
3. |
Hydraulic cutting |
1 set |
4. |
Control system (including control box) |
1 set |
5. |
Punching |
2 sets |
Working Flow of Fire Damper
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Samples
Advantage for Fire Damper
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
