1250mm Width Stainless Steel 0.05-0.25mm Steel Coil Embossing Machine Production Line
1.Uncoiling Machine
1.Outline data: About 2000×900×1350mm
2.coiled material mode:Φ200×1200mm air shaft
3.support the weigh: ≤1000kg
4.Side with brake systems: Magnetic powder brake
2.Embossing Machine
|
Product Name
|
Metal embossing machine
|
|
Material Specification
|
stainless steel
|
|
Thickness
|
0.05-0.25 mm
|
|
Max. Coil Width
|
1250mm
|
|
Working Speed
|
0-8m/min
|
|
Motor power
|
4kw
|
|
Machine Dimension
|
About 2400mm*900mm*1300mm
|
|
Total Weight
|
About 1500kg
|
|
Voltage
|
380v/3phase/50HZ or as customer's requirement
|
|
Roller Material
|
45# steel
|
|
Width of Roller
|
1200mm
|
|
Embossing Pattern
|
As per the samples or the customer’s requirement
|
3.Recoiling Machine
1.Outline data: about 2600×900×1350mm
2.coiled material mode:Φ200×1200mm air swelling shaft
3.support the weigh: ≤1000kg
4.Motor power: 220V 60Hz 3Phase 100 Nm torque motor,Speed: 0-18m/min
5.Gas rising axis side can be fine-tuned before and after
4. Flower Pattern
5.Applications
Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations, wall cladding, ceilings, bathrooms, kitchens and balconies.

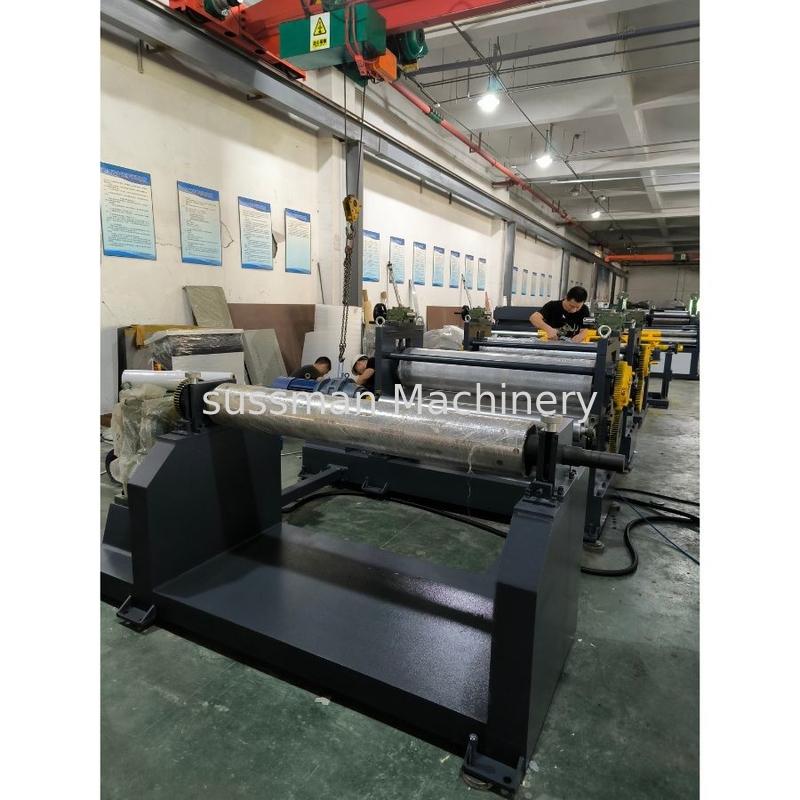

6. Embossing Machine Photo
