100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine

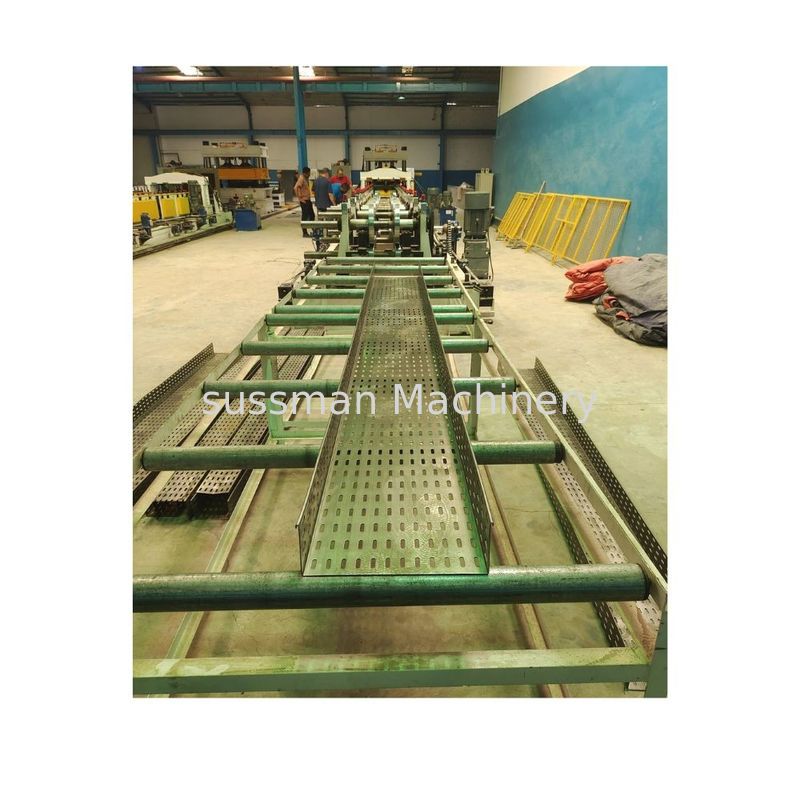

  • 100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine
  • 100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine
  • 100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine
  • 100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine

100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number RF-ST
Product Details
Type:
100mm-600mm Width Adjustable Cable Tray Roll Forming Machine
Main Motor Power:
22Kw
Hydraulic Cutting Power:
7.5Kw
Material Thickness:
0.8mm-1.2mm
High Light:

100mm Cable Tray Roll Forming Machine

,

Moderate Cable Tray Roll Former

,

22Kw cable tray forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
60 working days after deposit
Supply Ability
10 sets/month
Product Description

100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine



Cable tray roll forming machine is commonly used for cable management in commercial and industrial construction. This intelligent roll former could produce different types of cable trays like: Solid bottom cable tray, Trough cable tray, Channel cable tray, Perforated cable tray, Non perforated cable tray and Trunking cable tray etc. with different raw materials like: hot-dip galvanized steel, pre-galvanized steel, hot-rolled and cold-rolled steel, stainless steel and aluminum. Thickness range of material is 0.6mm-1.2mm or 1-2mm. You could set up 10 different lengths for cable tray.


In Electrical Industries, we are able to manufacture more machines like strut channel roll forming machine, DIN rail roll forming machine and Electrical Enclosure Box roll forming machine etc.


Technical Data:

5.1. Suitable Plate Material:

Steel thickness:1-2mm cold rolled steel and galvanized steel

Profile width after forming:100-600mm automatic change

Height of profile: 50-150mm

Sheet length: 2000—6000mm

5.2. Working Speed: About 2-3 meters / min

5.3. Forming Steps: about 20 stations

5.4. Material of Roller: Cr12, Quench HRC58-62 Plated Chrome

5.5. Material of Shaft: 45# Advanced Steel (Diameter: 90mm), thermal refining

5. 6. Driven system: Chain Driven

5.7. Main Power with reducer: 22KW WH Chinese Famous

5.8. Cutting: Hydraulic Cutting Cr12mov

5.9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

5.10. The whole machine is controlled by industry computer-PLC.

5.11 PLC--PLC-Delta

5.12 Encoder--Omron, Japan

5.13 Electric parts--Schneider

5.14 Adjust the width by the motors and the rails, controlled by the PLC




Machine List:



S.N Equipment name Quantity
1 5T hydraulic un-coiler 1 set
2 Leveling device 1 set
3 Servo feeding device 1 unit
4 Pre-cutting device 1 unit
5 Hydraulic punching device 1 set
6 Punching mould 4 sets
7 Main roll forming machine 1 set
8 Hydraulic station 1 set
9 Control system ( including control box) 1 set
10 Out tables 2 units
11 Spare parts 1 package
12 Safety cover 1 set




Profile Drawing:



Mental cold roll steel sheet Cable Tray Roll Forming Machine









Mental cold roll steel sheet Cable Tray Roll Forming Machine









Mental cold roll steel sheet Cable Tray Roll Forming Machine





Mental cold roll steel sheet Cable Tray Roll Forming Machine






100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine 4



Finished Products

100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine 5

 100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine 6


  Working Flow

Decoiler- Levelling- Servo Feeding- Punching- Main Roll Forming - Cutting- Runout Table
100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine 7

Application

100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine 8

100mm - 600mm Width Adjustable Moderate Cable Tray Roll Forming Machine 9

In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.
