Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming

Place of Origin	Wuxi Jiangsu China
Brand Name	Sussman
Certification	SGS, ISO9001, CE
Model Number	SM-PM

Product Details

Processing Thickness:

1.5-2.0MM Galvanized Steel G300Mpa

Roller Material:

Gcr15 Steel With Quenching

Shaft Diameter:

75mm

Main Motor Power:

11kw

Drives Method:

Gearbox Driven

Speed:

About 8-12m/min

Highlight:

Galvanized Steel Purlin Making Machine

Galvanized Steel Purlin Machine

U Profile Channel Steel Purlin Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Standard packing

Delivery Time

60 days after deposit

Payment Terms

L/C, T/T

Supply Ability

10 sets per month

Product Description

Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming Machine

1. U Post Machine Technical Data

configurations	manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system
Material	processing material	Colored Steel plate, Galvanized steel
	thickness	1.5-2.0mm
Manual decoiler	The maximum load cap acity:5 ton
	The coil inside diameter:450-550mm
Main Forming machine	Forming steps		18-20steps
	Shaft diameter		70 mm
	Thick of arch frame		18mm
	Frame body		300 H steel
	roller material		high grade NO. 45 forged steel with 0.05mm hard chrome plating
	shaft material		high grade NO. 45 carbon wrought steel
	cutter material		Cr12 mold steel with quenched treatment
	Transmission		By 1” chain
	Work speed		10m/min

2. C post machine main components

Decoiler→Feeding material into machine →punching device→Roll forming machine →Hydraulic cutting →Finished Products

Machine name	Quantity
Automatic decoiler	1 set
Servo feeding	1 set
Roll forming machine	1 set
Hydrualic punching device	1 set
Hydraulic cutting system	1 set
4 meters out tables	1 ste
PLC control box system	1 set
Tool box	1 package

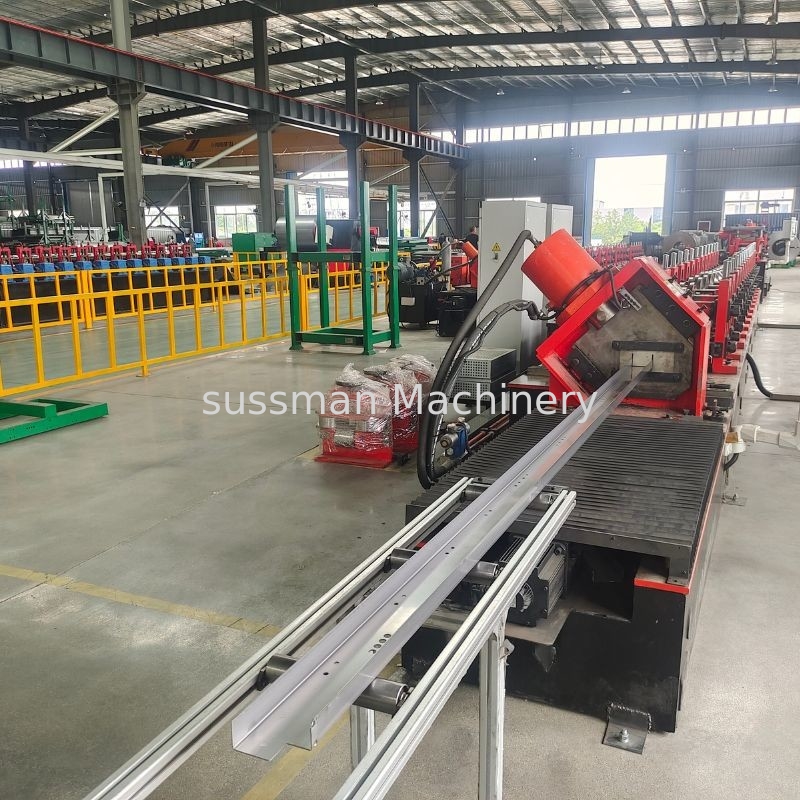

3. U Post Photo

Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming 0

4. U Post Machine More details

The C post roll forming line includes automatic decoiler, hydraulic punching, roll forming system, cutting equipment, hydraulic station, electric controlling system and supporter for finished products.

Fully automatic C profile purlin roll orming machine for both heavy and light-duty use.

Pre-punching and Post cutting is optional: If need to produce many sizes, we can adopt pre-cutting to save cost.

Automatic Galvanized Steel Purlin Making Machine U Profile Channel Roll Forming 1
