1.0-2.0mm Thickness Gi Steel U Shaped Roll Forming Machine For Woven Wire Mesh

Place of Origin	China
Brand Name	SUSSMAN
Certification	CE.SGS.ISO
Model Number	SS-RS

Product Details

Type:

U Profiles Roll Forming Machine

Material:

1.0-2.0mm, Galvanized Steel

Forming Steps:

12 Stations

Motor Power:

7.5KW

Profile:

C Profile, U Profile, Tube

Application:

Woven Wire Mesh

Highlight:

2.0mm U-Shaped Roll Forming Machine

Gi U Shaped Roll Forming Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD65000-85000 Per Set

Packaging Details

Standard package with film, plastic and steel wire. (or customized)

Delivery Time

Shipped in 90 days after payment

Payment Terms

L/C, T/T

Supply Ability

10 sets per month

Product Description

1.0-2.0mm Gi Steel U-Shaped Roll Forming Machine For Woven Wire Mesh

	Items	Specifications
Material of coil	Material Thickness	1.0-2.0mm Galvanized steel
Forming system	Rolling Speed	0-30m/min
	Roller Stations	About 12 stations
	Roller Material	Gcr15 Steel with quenching
	Shaft	60mm
	Maim Motor Power	7.5kw
	Hydraulic cutting Power	5.5kw
	Electrical parts	Schneider
Cutting	Material Of Cutting	CR12mov with quench treatment
system	Hardness	HRC58-62
	Tolerance	+-1.5mm
Electrical control system	Electric Source	220V, 60HZ,3 phase
Electrical control system	Control System	PLC Delta
	Weight	About 4 tons
	Way Of Drive	2 inches chain
	Size of machine	Length 8000mm* Width 800mm* Height 1000m

Technological process:
Uncoiling—feedingwithguide—Rollforming——non stop cutting—products collecting

Machine List:

Double heads de-coiler	1 set
Roll forming machine	1 set
PLC Control box	1 set
Hydraulic station	1 unit
Servo following cutting device	1 unit
3 meters auto stacker	1 unit

Application:

Metal u channel trim can be used individually, or in nested horizontal and vertical sets to provide endless options for covering the edges of woven wire fabric panels and perforated metal sheeting.

1.0-2.0mm Thickness Gi Steel U Shaped Roll Forming Machine For Woven Wire Mesh 0

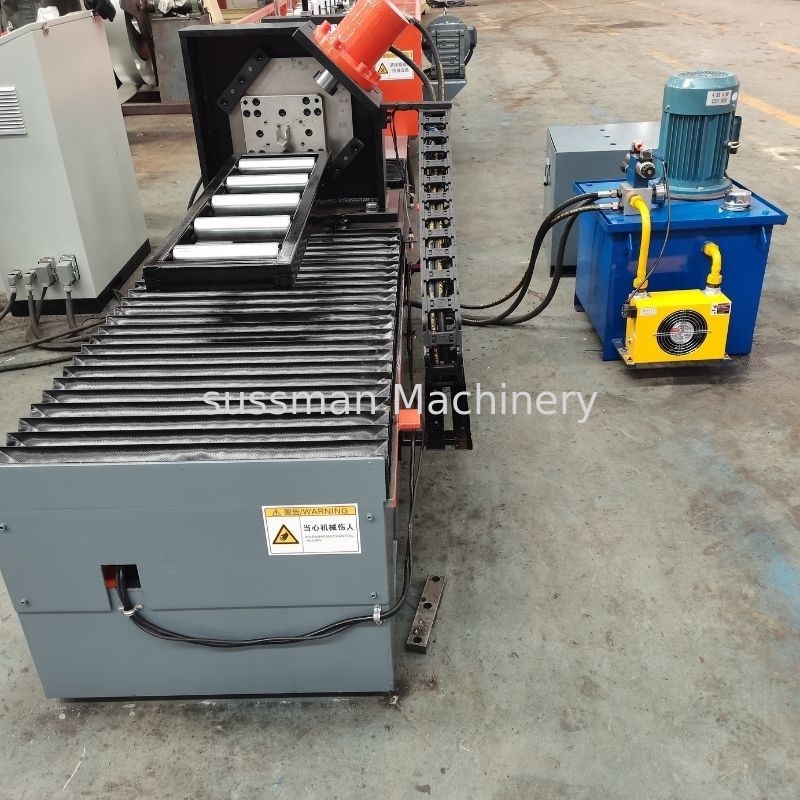

Main Machine Photo

1.0-2.0mm Thickness Gi Steel U Shaped Roll Forming Machine For Woven Wire Mesh 1
